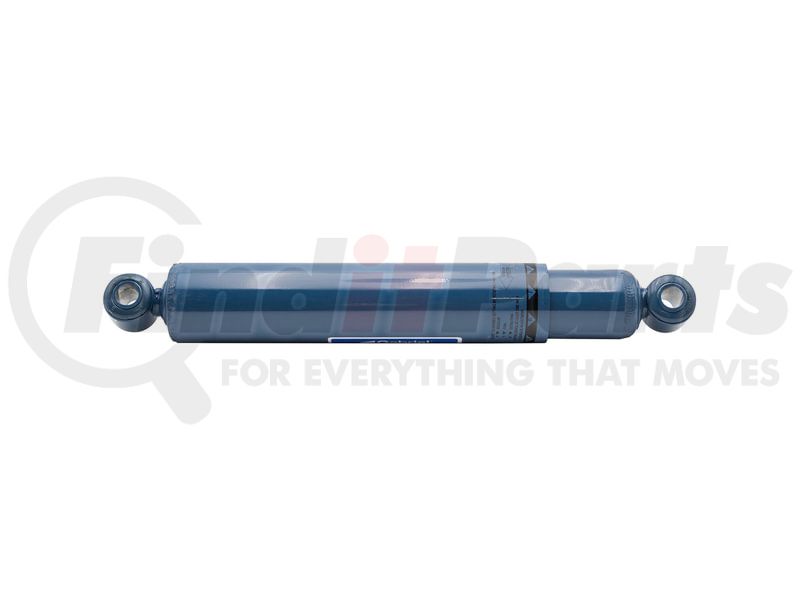

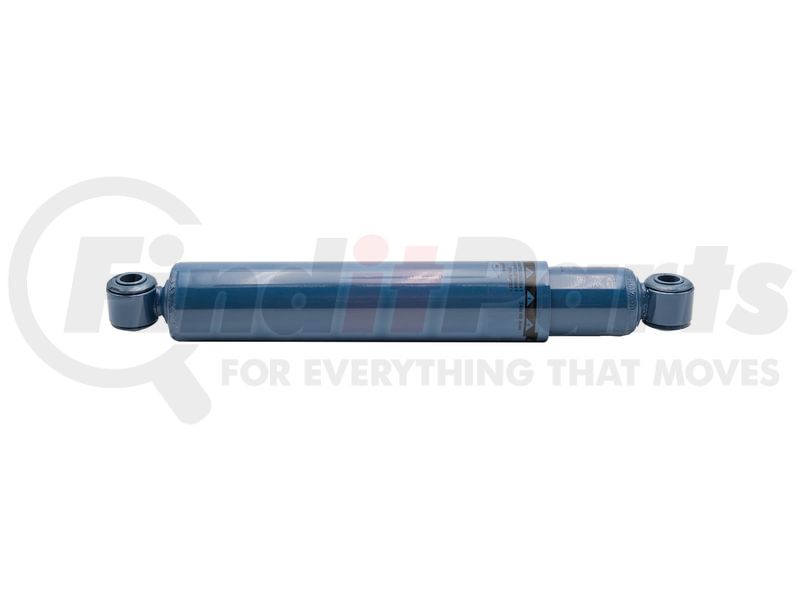

(888) 312-8812 Login SignupGABRIEL 89414 FleetLine Heavy Duty Shock Absorber
Tap to view 3 more
$10199
3 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
GABRIEL 89414 Part Description
Manufacturer
Product Description
FleetLine Heavy Duty Shock Absorber
Features & Benefits
- Top of the line, adjustable, heavy-duty gas shock for class 7 – 8 vehicles, school buses and transit buses
- Three settings for adjustability: OE ride (firm), increased handling & control (extra firm), or maximum driver comfort (regular)
- Specially formulated high temp. fluid & multi-lip Viton rod seal reduces friction & wear, even in extreme operating conditions
- Gas Cell design is superior to gas-charged shocks; gas cell double seals gas from fluid for optimum performance
- Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface

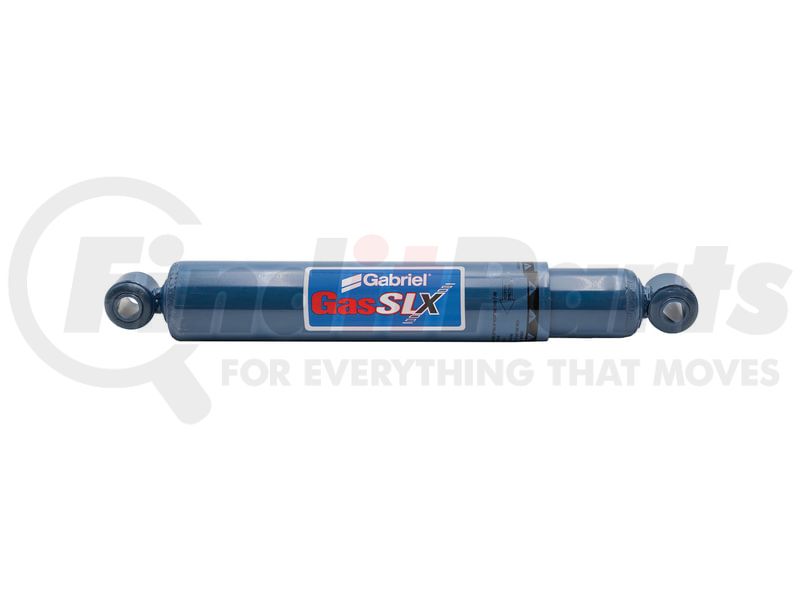

GasSLXTM Shocks – Adjustable Commercial Truck and Trailer Shocks (89000 series) - The three position GasSLX™ adjustable shocks absorbers by Gabriel® allow you to choose from one of three settings – Firm, Regular and Extra Firm – to match different applications. The GasSLX shock incorporates a gas cell design, creating a physical barrier between gas and fluid, preventing aeration which can cause fade, or reduction in damping force. This gas cell technology is a full-life feature and is better suited for longer-life commercial vehicle applications. And like all Gabriel shocks and struts, GasSLX shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Advanced gas cell technology improves gas retention and provides more consistent high temperature operation. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear.
GABRIEL 89414 Specifications
Product Attributes
| Compression | 217 |
| External Diameter Illustration | G |
| Lower Mount Code | ES36 |
| Recoil Cutoff | YES |
| Weight (lbs) | 9.3 |
| Bore | 1-5/8" |
| Stroke (in) | 11.46 |
| Collapsed Length (in) | 18.18 |
| Installation Hardware Included | No |
| Rebound | 1045‡ |
| Core Color | Y |
| Adjustable Damping | YES |
| Extended Length (in) | 29.65 |
| Dust Tube | YES |
| Upper Mount Code | ES36 |
| Dust Tube Material | Steel |
| Package Contents | 1 Shock |
| Accessory Kit # | n/a |
| Rebound (lb) | 1045‡ |
| Compression (lb) | 217 |
| HD Mounting Code Guide.pdf | https://gabriel.com/sites/default/files/2024_HD_Mounting_Code_Guide.pdf |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| MSDS Sheet Number | ARP002 / RC001 |
| UPC | 00043645924010 |
| VMRS Code | 016003016 |
| UNSPSC | 25172011 |
GABRIEL 89414 Part Interchanges
| Brand | Part Number |
|---|---|
| Holland | 471700000461, 90045536 |
| Sachs | 471700000461 |
| Meritor | M89414 |
| Monroe Shocks & Struts | 70648 |
| Bulldog | HD1214-0580, HD1215-0045 |
| Reyco Granning | 18286-01, 1828601, 665519 |
| Country Coach | 89414 |
| Hendrickson | 671779, 98583-020, 98583020 |
| Tuthill Transfer | 18286-01, 1828601 |
| TRP | 89414GSK |
| PRT | 925070 |
| N/A | 85013, 83209, CAT-768, ASH-294, AT-620, ASH-1205, ASH-1022, ASH-25823, ASH-25822, CAX-710, ASH-1228, CAX-894, AT-766, ASH1229, 9U9Z-18124-A, ASH1228, 9U94-18045-AA, ASH1205, 1C34-18045-JA, ASH1022, 1C34-18045-AA, 9U9Z18124A, AT620, ASH-1229, 9U9418045AA, ASH294, AT766, 1C3418045JA, ASH25823, 1C3418045AA, ASH25822, 47902-28, F6HZ18125D, F6HT-18080-FC, F6HT18080FC, 4790228, F6HZ-18125-D, AMS600108, AMS650401, AMS660108, AMS85768, AMS600142, AMS660142, AMS650420, B46-1594, B462502, 0346SS5, B461594, 0346-SS5, 508-68, E85013, E83205, E83209, 90044025, 90044682, AR1654, 57643, AR-1654, 58121-MB, 665632, 680279, ABP N32 G900010, ABP N32 O900010, 43-8-002, 436158, 43-8-014, 438002, 438014, 43-6-158, F347269, F347243, D2HZ-18080-A, D4HA-18080-AA, HU9418045BA, D2HZ18125A, D8HZ18125A, HU9Z18124B, D2HZ-18125-A, D8HZ-18125-A, DU9Z18124A, ASH24634, CU9Z18124A, HU9Z-18124-B, D2HZ-18125-B, F81D-18045-CD, D4HA18080A, F81Z18124CA, D4HA-18080-A, F81Z-18124-CA, D2HZ18080A, D4HA18080AA, HU9418045AA, ASH-24473, DU9Z-18124-A, ASH-24634, 47 1700 007 203, DU9Z18124B, ASH24473, F6HZ18080FC, ASH12251, BU9Z18124A, HU9Z18124C, D2HZ18125B, F81D18045CD, 9U9Z18124B, ASH24634 , BU9Z-18124-A, DU94-18045-CB, CU9Z-18124-A, ASH24522, ASH-12251, DU9Z-18124-B, ASH-24522, F6HZ-18080-FC, HU9Z-18124-C, 35901-0001, 359010001, 684280, 4940600, KG6415, 34768, 6710, 557015, 6894, 66672, 557001, 66710, 16770, 16767, 70663, 70651, 65401, 65516, 65420, 925101, 315432, 317776, 316491, 410057, SA3209, 3919947, 3916352, 3199947, 83176208, 3919585, 373010001, 1091351, 3919914, 37301-0001, 12887-02, 12887-01, 1714601, 1288702, 17146-01, 1288701, 9160933, 8160195, 5000745, A4089, 60670-009, 665532, A-2240, S4089, 654899, S-2240, A-4089, A2240, S-4089, 60670009, S2240, 88-1468, 8805-1018, 88-1558, 88-5162, 88-1457-SP1, 02-02739PLUS, 0202739PLUS, 02-02739-2, 02027392, 90044025PLUS, 020739PLUS2, 02-0739PLUS-2, 790335C91, M85013, M83209, 3HR582 MTM, 1139069 MTM, 14QK2100P2, 14QK366P4, 14QK-372M2, 596690044025, 14QK-366P4, 25625187, 5966-90044025, 651151, 25632561, 14QK2105, 14QK-2105, 14QK2107, 14QK-2100P2, 14QK-2107, 14QK372M2, 441 - 850135420, 441 - 850135401, 441 - 83209, HD1215-0043, HD1215-0093, 0202061, 665657, 0202739, 85013A0C, 85013ac0, 02-02739, 02-02061, 1668730, 1722222, F4-B46-1594-H0, 24-015943, 1083209, 665044, 727609, 728625, 14626 ADV |
GABRIEL 89414 Fits Vehicles
- Western Star 5800 (1997-2002)
- Western Star 6900 (1989-2001)
- Western Star 5900 (1989-2001)
- Western Star 4900 (1989-2002)
- Western Star 4800 (1989-2002)
- Western Star 3800 (1989-1997, 1999-2001)
- Peterbilt 520 (2017-2022)
- Peterbilt 587 (2011-2018)
- Mack RB (1992-2005)
- Peterbilt 579 (2013-2022)
- Peterbilt 389 (2008-2022)
- Mack LEU (2009)
- Peterbilt 388 (2008-2015)
- Peterbilt 386 (2006-2016)
- Peterbilt 372 (1989-1993)
- Peterbilt 377 (1987-2001)
- Peterbilt 382 (2011-2017)
- Peterbilt 365 (2010-2019)
- Mack MRU (2008-2019)
- Peterbilt 376 (1988-1992, 1994-1996, 1999)
- Peterbilt 375 (1987-1996)
- Mack LE (2001-2006)
- Mack MR (1981-2007)
- Mack DM (1981-2003)
- Peterbilt 320 (1987-2018)
- Peterbilt 348 (2010-2021)
- Peterbilt 337 (2010-2021)
- Peterbilt 220 (2007, 2010, 2013-2022)
- Peterbilt 379 (1986-2007)
- Peterbilt 378 (1988-2007)
- Peterbilt 357 (1986-2008)
- Peterbilt 387 (2000-2011)
- Peterbilt 330 (1995-2005, 2007-2021)
- Holiday Rambler Eclipse (2023-2024)
- Thor Motor Coach Resonate (2023-2024)
- Thor Motor Coach Luminate (2023-2024)
- Thor Motor Coach Indigo (2023-2024)
- Fleetwood Flex (2023-2024)
- Jayco Precept (2014-2024)
- Thor Motor Coach Windsport (2011-2024)
- Thor Motor Coach Outlaw (2011-2023)
- Thor Motor Coach Miramar (2014-2024)
- Thor Motor Coach Hurricane (2011-2024)
- Thor Motor Coach Challenger (2009-2024)
- Thor Motor Coach A.C.E (2011-2024)
- Nexus Maybach (2017-2020)
- Jayco Alante (2016-2024)
- Holiday Rambler Vacationer (2000-2007, 2009, 2011-2024)
- Holiday Rambler Endeavor (2000-2014, 2016-2024)
- Holiday Rambler Admiral XE (2016-2018)
- Holiday Rambler Admiral SVE (2007)
- Holiday Rambler Admiral SE (2002-2006)
- Holiday Rambler Admiral (2000-2001, 2007-2010, 2016-2024)
- Forest River Georgetown GT7 (2020-2024)
- Forest River Georgetown GT5 (2017-2024)
- Forest River Georgetown GT3 (2016-2024)
- Forest River Georgetown (2008-2017)
- Forest River FR3 (2013-2024)
- Fleetwood Storm (2001-2007, 2011-2018)
- Fleetwood Southwind (2000-2023)
- Fleetwood Fortis (2020-2024)
- Fleetwood Flair (2000-2007, 2015-2024)
- Fleetwood Bounder (2000-2024)
- Fleetwood Axon (2018)
- Entegra Coach Vision (2019-2024)
- Entegra Coach Emblem (2019-2024)
- Damon Outlaw (2007-2011)
- Damon Intruder (2000-2007)
- Damon Daybreak (2000-2011)
- Damon Challenger (2000-2014)
- Coachmen Pursuit (2013-2024)
- Coachmen Mirada (2008-2024)
- Coachmen Encounter (2011-2016)
- Coachmen Encore (2021-2024)
- Coachmen Aurora (2004-2006, 2008)
- Winnebago Vista LX (2016-2018)
- Winnebago Vista (2002-2004, 2007-2022)
- Winnebago Sunstar LX (2016-2018)
- Winnebago Sunstar (2002-2004, 2016-2022)
- Winnebago Sunova (2002-2007, 2016-2017)
- Winnebago Sightseer (2002-2017)
- Winnebago Intenet (2018-2020)
- Winnebago Adventurer (1992-2017, 2019-2023)
- Monaco Coach Monarch (2001-2002, 2006-2014)
- Monaco Coach La Palma (2000, 2002-2006, 2009, 2012-2013)
- Spartan Motors Motorhome (1991-1992)
- Spartan Motors Mountain Master (1993-1995)
- Ford LA8000F (1991-1997)
- Ford LTLA9000 (1992-1997)
- Ford LTA9000 (1991-1997)
- Ford LLA9000 (1992-1997)
- Ford LA9000 (1991-1997)
- Ford AT9522 (1997-1998)
- Ford AT9513 (1996-1998)
- Ford A9522 (1997)
- Ford A9513 (1996-1998)
- Ford CLT9000 (1981-1991)
- Ford CL9000 (1981-1991)
- Sterling Truck L9513 (1999-2000)
- Sterling Truck L9511 (1999-2001)
- Sterling Truck L9501 (1999-2000)
- Sterling Truck A9522 (1999)
- Sterling Truck A9513 (1999-2001)
- Sterling Truck L9500 (1999-2010)
- Sterling Truck L9522 (1999)
- Sterling Truck L8513 (1999-2001)
- Sterling Truck L8500 (1999-2010)
- Sterling Truck L8501 (1999)
- Sterling Truck A9500 (1999-2010)
- Ford F-59 Commercial Stripped Chassis (1988-1997, 2011-2021)
- Ford F-53 Motorhome Chassis (1988-1997, 1999-2004, 2006-2023)
GABRIEL 89414 Cross References
We have 10 alternatives for the 89414 by GABRIEL:
