GABRIEL part description

Product Description

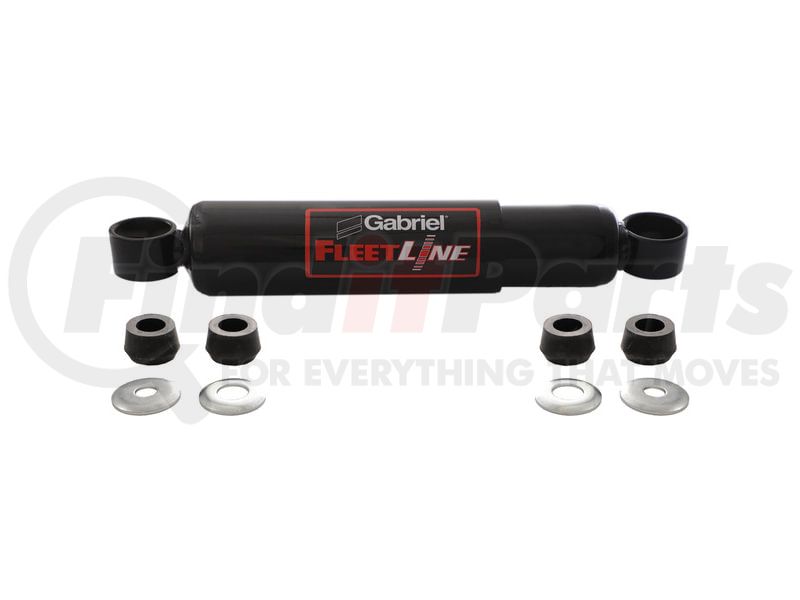

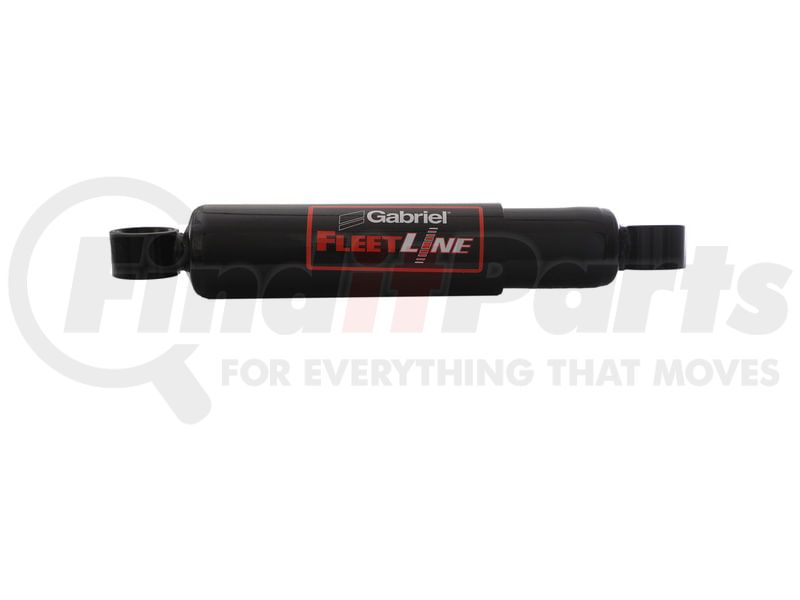

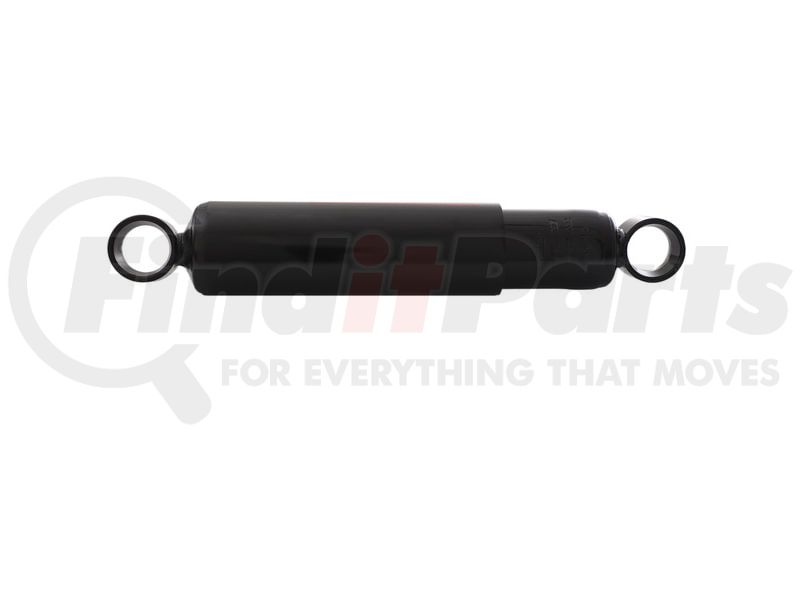

FleetLine Heavy Duty Shock Absorber

Features & Benefits

  • Larger 1 5/8” bore supplies improved durability and greater tensile strength for harsher operating conditions
  • Bulged design provides increased fluid capacity and cooler operation in extreme conditions (85300 & 85700 series)
  • Solid steel eye rings & 360° arc-welded end mounts deliver tough tensile strength that reduces end mount failures
  • Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface
  • Anti-corrosion end mounts to inhibit rust & corrosion
  • Durable piston seal design
  • Formulated shock oil for exceptional anti-fade performance

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Product Attributes

Compression 199
External Diameter Illustration C
Rebound 523
Core Color Y
Weight (lbs) 6.4
Collapsed Length (in) 13.23
Dust Tube YES
Extended Length (in) 21.02
Lower Mount Code EB2
Recoil Cutoff NO
Strut Mount Design Upper
Bore 1-5/8"
Stroke (in) 7.79
Installation Hardware Included Yes
Upper Mount Code EB2
HD Mounting Code Guide.pdf https://gabriel.com/sites/default/files/2024_HD_Mounting_Code_Guide.pdf
Accessory Kit # 145080 (2)
Compression (lb) 199
Dust Tube Material Steel
Package Contents 1 Shock & Accessory Kit
Rebound (lb) 523

Additional Information

Harmonized Tariff Code (Schedule B) 8708801600
Country of Origin (Primary) MX
Country of Origin 2 IN
MSDS Sheet Number ARP002 / RC001
UPC 00043645925024
VMRS Code 016003016
UNSPSC 25172011

Part Interchanges

GABRIEL 85012 Cross Reference

We have 96 alternatives for the 85012 by GABRIEL:

Fits Vehicles

  • Kenworth W990 (2019-2024)
  • Peterbilt 389 (2008-2021)
  • Peterbilt 388 (2008-2015)
  • Peterbilt 386 (2006-2016)
  • Peterbilt 367 (2008-2016)
  • Peterbilt 372 (1989-1993)
  • Peterbilt 377 (1987-2001)
  • Peterbilt 362 (1981-2006)
  • Peterbilt 365 (2008-2015)
  • Peterbilt 385 (1995-2007)
  • Peterbilt 376 (1988-1992, 1994-1996, 1999)
  • Peterbilt 375 (1987-1996)
  • Peterbilt 340 (2007-2010)
  • Peterbilt 325 (2008-2019)
  • Peterbilt 220 (2007, 2010, 2013)
  • Peterbilt 379 (1986-2007)
  • Peterbilt 378 (1988-2007)
  • Peterbilt 357 (1987-2008)
  • Peterbilt 387 (2000-2011)
  • Peterbilt 335 (2005-2010)
  • Peterbilt 330 (1995-2005, 2007-2016)
  • Isuzu NPR (1986-1995)
