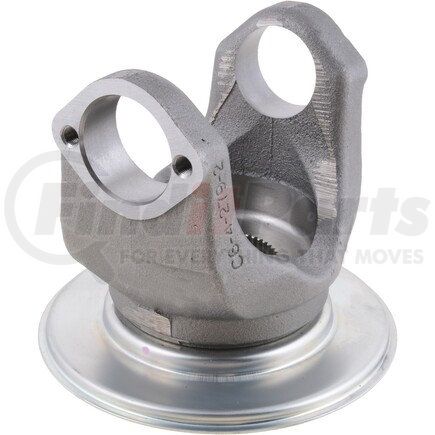

Name: Dana 6-4-08452X 1710 Series Differential End Yoke - Assembly, Steel, BP Yoke Style, 49 Spline
SKU: 6408452x
Price: 906.49 USD
Availability: InStock

DANA part description

END YOKE ASSY

Product Attributes

Series	1710
Material	Steel
Spline Count	49
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.819 IN
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.125 IN
Outside Yoke Dimension (In) E	6.094 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	BP
Major Diameter	2.544 IN
C/L To End Hub S	5.570 IN
C-Bore Depth	0.120 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913222079
VMRS Code	022003072

Part Interchanges

DANA 6-4-08452X Cross Reference

We have 2 alternatives for the 6-4-08452X by DANA:
