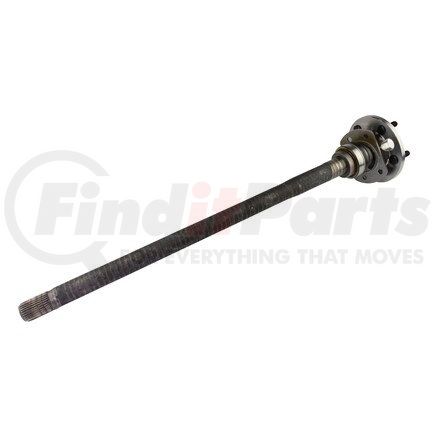

Dana 84377-1 - Drive Axle Shaft Assembly - Right, Steel, 29.71 in. Length, 30 Spline, DANA 44 Axle
$1,45949
In stock
limited availability at this price!
. Learn more
DANA part description
| Axle Model: | DANA 44 |
| Material: | Steel |
| Axle Cover Bolt Hole Qty: | 10 |
| Location: | RH |
| Axle Length: | 29.940 in. |
| Spline Count: | 30 |
| Axle Spline Count: | 30 |
| Bolt Pattern: | 5 x 4.5 |
| Wheel Stud Hole Diameter (IN): | 0.607 |
| Brake Pilot Diameter (IN): | 2.842 |
| Bearing Pilot Diameter (IN): | 1.535 |
| Axle Shaft Included: | Y |
| Axle Type: | Complete Assembly |
| Bearing Included: | Y |
| Full-Floating Or Semi-Floating: | Semi-Floating |
| Inner Axle Included: | Y |
| Number of Wheel Lugs: | 5 |
| Outer Axle Included: | Y |
| Quantity: | 1 |
| Retainer Ring Included: | Y |
| Seal Included: | Y |
| Wheel Bearing Included: | Y |
| Wheel Studs Included: | Y |
Features & Benefits
- Genuine OE quality. Tested and proven.
- Ultrasonically tested for internal cracks that magnetic testing can miss.
- Engineered for consistent quality and durability
- Built from high grade steel that stands up to any grade on the market.
- Precision manufacturing processes
- Includes studs, bearings and seal where applicable
- Heat-treated for optimal hardness and durability
Product Attributes
| Axle Model | DANA 44 |
| Material | Steel |
| ABS/Non-ABS | Non-ABS |
| Length (In) | 29.710 IN |
| Location | RH |
| Spline Count | 30 Inboard |
| Axle Spline Count | 30 Inboard |
| Axle Cover Bolt Hole Qty | 10 |
| Axle Length (In) | 29.710 IN |
| Bearing Pilot Diameter (In) | 1.535 IN |
| Bolt Pattern | 5 X 4.50 |
| Brake Pilot Diameter (In) | 2.842 IN |
| Includes Tone | Y |
| Wheel Stud Hole Diameter (In) | 0.607 IN |
| Cover Bolt Quantity | 10 |
| Axle Type | Complete Assembly |
| Quantity | 1 |
| Length (mm) | 754.634 mm |
| ABS Sensor Ring Installed | N |
| Axle Shaft Included | Y |
| Bearing Included | Y |
| Full-Floating Or Semi-Floating | Semi-Floating |
| Inner Axle Included | Y |
| Number Of Wheel Lugs | 5 |
| Outer Axle Included | Y |
| Retainer Ring Included | Y |
| Seal Included | Y |
| Seal Kit Included | N |
| U-Joint Included | N |
| Wheel Bearing Included | Y |
| Wheel Bolt Prep Kit Included | N |
| Wheel Nuts Included | N |
| Wheel Studs Included | Y |
| Axle Length (Mm) | 754.634 MM |
| ABS Tone Ring Included | No |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708508500 |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00023913133818 |
Part Interchanges
Fits Vehicles
- Jeep TJ (2003-2006)
- Jeep Wrangler (2003-2006)
