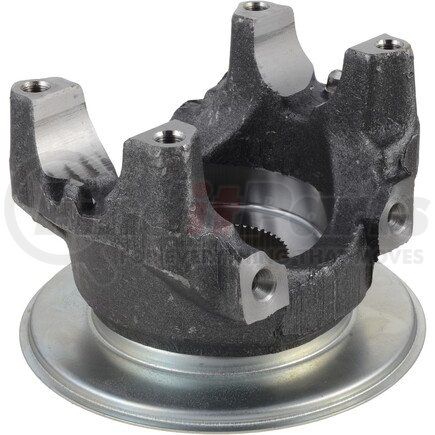

Name: Dana 170-4-08444-1X SPL170 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 49 Spline
SKU: 1704084441x
Price: 389.49 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	SPL170
Spline Count	49
Yoke Style	HR
Hub Diameter R	3.820
C/L To End Hub S	6.040
Type	Splined Hole
Outside Yoke Dimension (In) E	6.456
Yoke Bearing Dimension (In) D	2.166
Major Diameter	2.544
Involute Spline	Y
Length Thru Hole Q	2.682
VMRS	022003072
C-Bore Depth	0.240
Includes Slinger/Plug	Y
Assembly	Y
Material	Steel
Package Type	EACH
Package Qty	1
Weight	8.28 LB
Country of Origin	Mexico

Product Attributes

Series	SPL170
Material	Steel
Spline Count	49
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.820 IN
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.682 IN
Outside Yoke Dimension (In) E	6.456 IN
Yoke Bearing Dimension (In) D	2.166 IN
Yoke Style	HR
Major Diameter	2.544 IN
C/L To End Hub S	6.040 IN
C-Bore Depth	0.240 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913225261
VMRS Code	022003072

Part Interchanges
