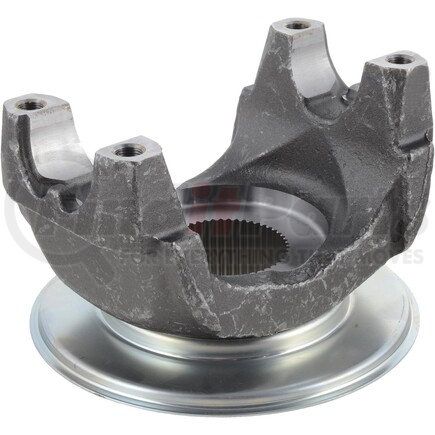

Name: Dana 6.3-4-08441-1X 1760 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 49 Spline
SKU: 634084411x
Price: 332.99 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1760
Spline Count	49
Yoke Style	HR
Hub Diameter R	3.819
C/L To End Hub S	5.750
Type	Splined Hole
Outside Yoke Dimension (In) E	7.094
Yoke Bearing Dimension (In) D	1.938
Major Diameter	2.544
Involute Spline	Y
Length Thru Hole Q	2.677
VMRS	022003072
C-Bore Depth	0.240
Includes Slinger/Plug	Y
Assembly	Y
Material	Steel
Package Type	EACH
Package Qty	1
Weight	7.44 LB
Country of Origin	Mexico

Product Attributes

Series	1760
Material	Steel
Spline Count	49
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.819 IN
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.677 IN
Outside Yoke Dimension (In) E	7.094 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	HR
Major Diameter	2.544 IN
C/L To End Hub S	5.750 IN
C-Bore Depth	0.240 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913330071
VMRS Code	022003072
