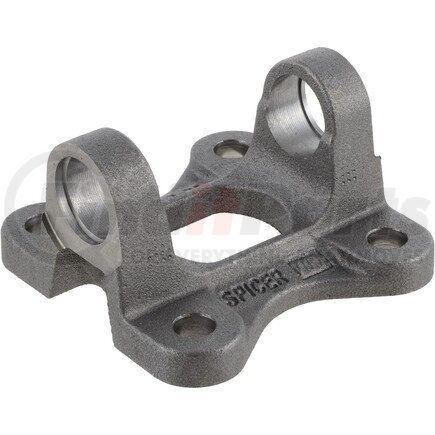

Dana 2-2-01474 - 1330 Series Drive Shaft Flange Yoke - Steel, 4 Bolt Holes, Square Design
$6149
In stock
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1330 |
| Flange Or Swing Dia. In. (A) | 3.880 |
| Bolt Circle Dia. In. (B) | 3.000 |
| Bolt Hole Dia. In (B) | .487 - DRILLED |
| Number Of Bolt Holes | 4 |
| Pilot Dia. M=Male F=Female (C) | 2.436 - FEMALE |
| Flange Face To C/L In. (G) | 1.618 |
| Material | Steel |
| Outside Yoke Dimension In.(E) | 3.875 |
| Yoke Bearing Dimension In. (D) | 1.062 |
| Design | Square |
| VMRS | 024002016 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 2.7 LB |
| Country of Origin | Mexico |
Dana Holding Corporation Spicer 1330 Series Flange Yoke
Swap out your truck or heavy equipment’s bad flange yoke with the high-quality Dana Holding Corporation Spicer 1330 Series flange yoke. Precision-engineered to efficiently connect a universal joint to a companion flange, this component helps restore your driveline to proper working order.
Features & Benefits
- Made in the USA
- Premium-quality 1330 Series driveshaft flange yoke
- Proven craftsmanship and durability ensure dependable performance
- Meticulously tested to withstand harsh operating conditions
- Spicer products are designed to the same exacting standards as specified by OEMs
- Backed by Dana’s Quality Management Standard ISO 9001 and Environmental Management System ISO 14001 certifications
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
Product Attributes
| Series | 1330 |
| Material | Steel |
| Number of Bolt Holes | 4 |
| Design | Square |
| Bolt Circle Dia. In. (B) | 4.271 IN |
| Bolt Hole Dia. In (B) | .487 - DRILLED IN |
| Flange Face To C/L In. (G) | 1.618 IN |
| Flange Or Swing Dia. In. (A) | 5.423 IN |
| Outside Yoke Dimension In.(E) | 3.875 IN |
| Pilot Dia. M=male F=female (c) | 2.436 - FEMALE |
| Yoke Bearing Dimension In. (D) | 1.062 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913239046 |
| VMRS Code | 024002016 |
Part Interchanges
