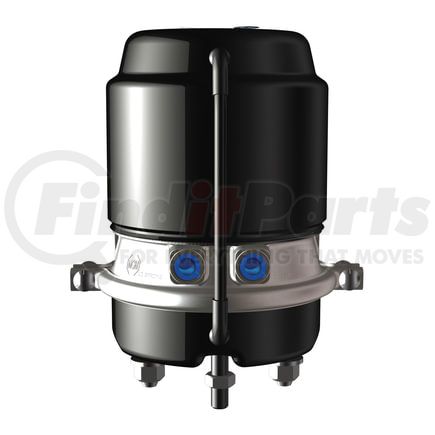

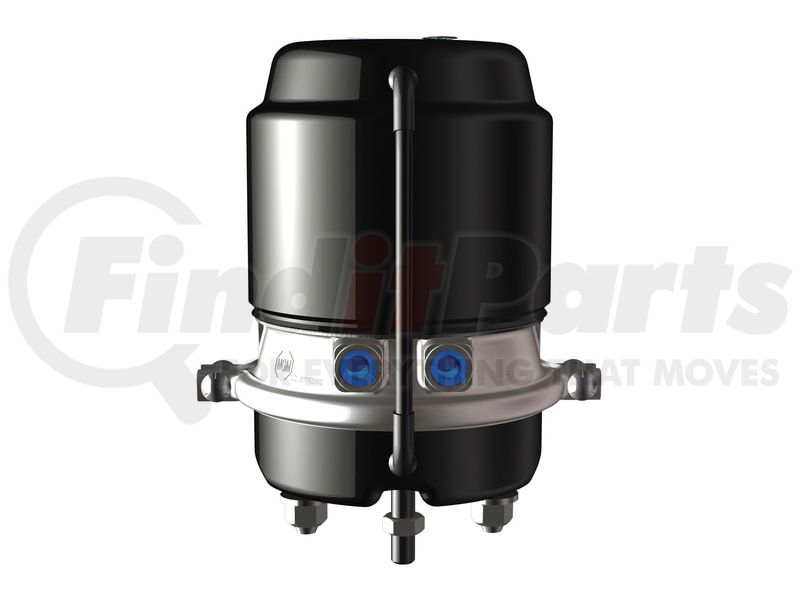

MGM Brakes MJS3030ET051X - Air Brake Chamber - Combination
- Part Number
- MJS3030ET051X
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination
details
$7,71984
Package Price for 16 Units
@ $482.49 per unit
2 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper ResistantDesign
- Lighter Weight
- 3 Inch (76.2 mm) Long Stroke
- Compact Size
- Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion- Approx. 1.25 inch (31.8 mm) Protrusion On "Long Stroke" Models When Manually Released
- Lower Hold Off Pressure (Less Air Consumption)
- Epoxy Coated Return Spring
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel Head, Epoxy Coated
- Available With 1,749 lb (793.3 kg) -2,450 lb (1,111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 17-36
- Center Hole Shield
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 23.10 lb (10.5 kg) |
| Weight lb (kg) Single | 14.92 lb (6.8 kg) |
| A | 10.73" (272.5 mm) |
| B | 8.43" (214.1 mm) |
| C | 8.32" (211.3 mm) |
| D | 7.50" (190.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| G | 5/8" - 18 UNF (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
