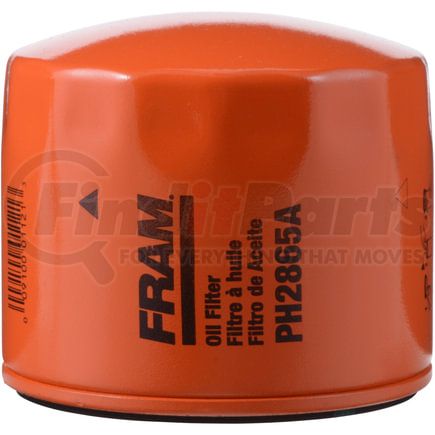

FRAM PH2865A Part Description
Manufacturer
Product Description
FRAM, PH2865A, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
Spin-on Oil Filter
FRAM PH2865A Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 3.156 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve Setting | 12 PS |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.250 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 3.140 IN |
| Gasket Outside Diameter | 3.563 IN |
| Attachment Type | Spin-On |
| Burst Pressure | 200.000 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | M20x1.5 MM |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 3.781 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Metric |
| Burst Pressure | 200.000 PS |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100380821 |
| UNSPSC | 15121501 |
FRAM PH2865A Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF50 |
| ACDelco | PF50 |
| AMSOIL | ASF54, SDF54 |
| ATLAS | M-48 |
| AUTOPAR | FE167 |
| AUTOPRO | 2390 |
| AWARD | AOF-109 |
| Autopar - Archived | FE167 |
| BALDWIN | B166 |
| BECK/ARNLEY | 041-8020 |
| Beck/Arnley | 041-8156 |
| Big A | 92390 |
| Bosch | 72119 |
| Canada Tire | 17-1891-4 |
| Car Care | OF2865 |
| Carquest | 85390 |
| Casite Filters | CF2865 |
| Cenex | CO437 |
| Champ | PH2865 |
| Champion | OF24 |
| Champion Filters | OF24 |
| Co-op | PL-503 |
| Coopers | FT4906 |
| Crosland | 664 |
| Deutsch | D332 |
| Donaldson | P551306 |
| Dynalife | CN-2865 |
| Evergard | E109 |
| FVP | R1390 |
| Facet Industrial | 2865 |
| Factory Motor Parts | R1390 |
| Filters Inc | OF2865 |
| Flag | C-2865A |
| Fleetguard | LF795 |
| Fleetrite | LFR-8795 |
| Ford | 140516030, E1NN-6714-AA, E1NN-6714-AB |
| GUD Filters | Z76 |
| Girling | F443, F6469 |
| Gonher | GP42 |
| Goodyear | 222-4517, L2865 |
| Grand Prix | PH2865 |
| Grease Monkey | GM2865 |
| Group 7 | L10109 |
| Hastings | LF154 |
| Honda | 15400-634-003, 15400-634-004, 15400-634-013, 15400-634-023, 15400-634-033, 15400-634-505, 4-1090, 15400-634-010 |
| Hutchens | SF-109 |
| IAPCO | A-0226-001, A-0238-004, OF15, OF30 |
| ITM | 11-10900, 11-10903, 111-0900 |
| ITM Autoparts | 111-0900, 11-10900, 11-10903 |
| Installer Edge | AL2865A |
| International Parts Service | 4-1090 |
| Jiffy Lube | JL109, HL2865A |
| K Mart | K-25, MP-25 |
| Kendall | K14 |
| LUBER-FINER | PH2865 |
| Lazorlite | L11-1090 |
| Lee | LF-75, LF-75HP |
| Letourneau | MO2865 |
| Lugger | 140516030 |
| MANN-HUMMEL FILTERS | L10109 |
| MPA | 2512 |
| Mann-Filter | W914/80, W917/99, W932/82 |
| Marathon | MO2865 |
| Master Parts | PH-2865 |
| Micro Filters | F-109 |
| Mighty Distributing System | L10109, PH2865 |
| Minit-Lube | PH2865 |
| Mobil | L10109 |
| Motorcraft | FL-315 |
| NAPA | 1390 |
| OE+ | OF-254, OF-362 |
| PMC | PE-739 |
| PREMIUM GUARD | PG99684 |
| Phillips 66 | PO109 |
| Precision Tune | OF-119 |
| Pro-Gauge | PGO-109 |
| Purflux | LS488 |
| Purolator | L10109 |
| Quaker State | L10109, PO-122 |
| Quality Manufacturing Inc | QF2865 |
| STP | PH2865 |
| STP Filters | PH2865 |
| Satoh | 140200, 0140200 |
| Sears | 45186, 45196 |
| Security Filters | PH2865 |
| Shell - Archived | L10109 |
| Shibaura | 140516030 |
| Sunoco | O-15 |
| Trust | PH2865 |
| Unocal 76 | PF2865 |
| Valu-test | V2390 |
| Valvoline | L-2865 |
| Vera | 10-00124 |
| WIX FILTERS | WIX FILTERS, 51390 |
| Wako | LO-707K |
| Warner | PH2865 |
| Warner Filters | PH2865 |
| Web | W2865A |
| Western Auto | 74-5931-6 |
| Wix | 51390 |
FRAM PH2865A Fits Vehicles
- Suzuki Aerio (2002)
- Honda Civic (1973-1979)
- Honda Accord (1976-1978)
