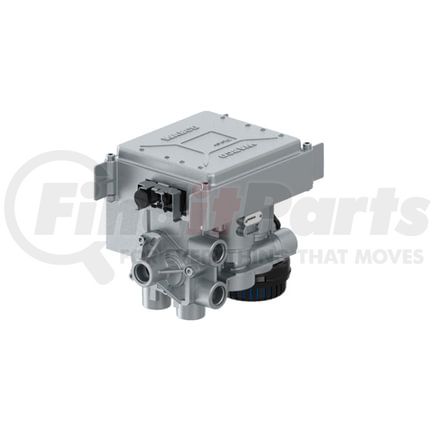

(888) 312-8812 Login SignupWABCO 4801030150 Electronic Brake Control Module - EBS Axle Modulator 2 Channel, Gen1
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WABCO 4801030150 Part Description
WABCO 4801030150 Specifications
Product Attributes
| Type | 4 x 2 |
| Temperature Range | -40°C to +80°C |
| Distance Between Holes | 100 mm |
| Application | 4x2, MP II |
| Calculated Volume (dm³) | 8.234 |
| Rated current | 5 A |
| Max. operating pressure | 145.0 psi |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Port thread 3 | Integrated Silencer |
| Port thread 23 | M16 x 1.5 JED - 388 |
| Voltage | 24 V |
| Mounting | 2x M12 x 1.5 |
| Weight | 13.009 |
| Port thread 11 | M22 x 1.5 JED - 388 |
| Port thread 12 | M22 x 1.5 JED - 388 |
| Max. operating pressure | 145.0 psi |
| Size | 230 x 179 x 200 |
| Port Thread 13 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED - 388 |
| Protection class | IP 66 / IP 69 K |
| Port thread 22 | M22 x 1.5 JED - 388 |
WABCO 4801030150 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 4801030150 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
