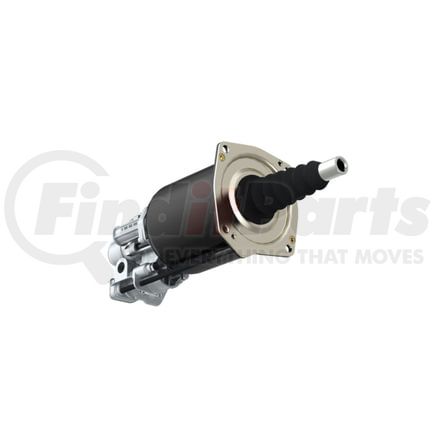

(888) 312-8812 Login SignupWABCO 9700511640 Clutch Servo
Tap to view 3 more
MSRP: $1,670.78
$1,31149
Save $359.29
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 9700511640 Part Description
WABCO 9700511640 Specifications
Product Attributes
| Distance Between Holes | 130 mm |
| Size | 289 x 128 x 124 |
| Max. operating pressure | 145.0 psi |
| Max. operating pressure | 10.0 bar |
| Temperature Range | -40°C to +80°C |
| Calculated Volume (dm³) | 4.587 |
| Length | 396 mm |
| Weight | 7.9256 |
| Push-rod thread | Hole Ø 12.0 mm |
| Medium | Brake fluid SAE J 1703 |
| Port thread 32 | Ø 8.0 mm |
| Port thread 31 | Flap Exhaust |
| Mounting | 4x Ø 9.0 mm |
| Port thread 11 | M16 x 1.5 |
| Port Thread 1-4 | M14 x 1.5 ( K ) |
| Stroke | 85.0 mm |
WABCO 9700511640 Cross References
| Brand | Part Number |
|---|---|
| MERITOR | S9700511640 |
| WABCO | S9700511640 |
WABCO 9700511640 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9700511640 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
