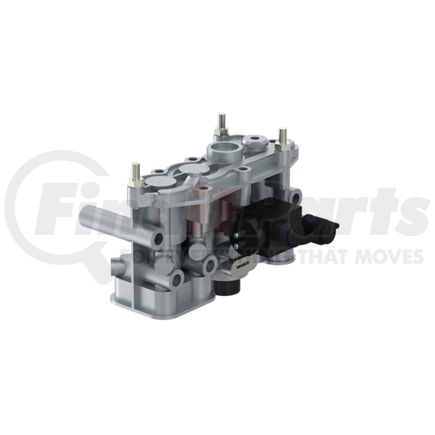

Name: WABCO 4630840100 Air Brake Control Valve
SKU: 4630840100
Price: 565.03 USD
Availability: OutOfStock

WABCO part description

Lift Axle Control Valve

Product Attributes

Size	146 x 166 x 129
Max. operating pressure	13.0 bar
Rated current	220 mA
Temperature Range	-40°C to +80°C
Version	Dual-circuit
Calculated Volume (dm³)	2.607
Protection class	IP 6K6K
Type	LACV
Port thread 24	M16 x 1.5
Port Thread 41	M16 x 1.5
Port Thread 42	Test port
Application	Trailer
Weight	4.8502
Port thread 21	M16 x 1.5
Actuation	Electrical
Port thread 3	Flap exhaust
Port thread 2	M22 x 1.5
Port thread 1	M16 x 1.5
Port thread 22	M16 x 1.5
Port thread 23	M16 x 1.5
Electrical connection	M27 x 1
Bolt Lengths	12.0 mm
Voltage	24 V

WABCO 4630840100 Cross Reference

We have 31 alternatives for the 4630840100 by WABCO:

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
