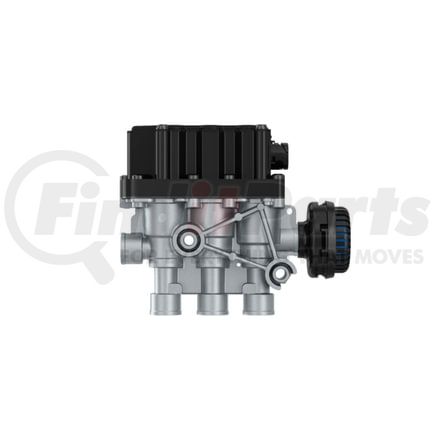

Name: WABCO 4728800000 Electronically Controlled Air Suspension (ECAS) Solenoid Valve
SKU: 4728800000
Price: 292.49 USD
Availability: InStock

WABCO part description

Electronically Controlled Air Suspension (ECAS) Solenoid Valve

Product Attributes

Voltage	24 V
Mounting	2 x Ø 9 mm
Max. operating pressure	20.0 bar
Size	201 x 167 x 73
Weight	5.042
Temperature Range	-40°C to +80°C
Multi Nominal Diameter (From Port 1 To X)	9.8 / 7.0 mm
Electrical connection	Bayonet DIN 72585-A1-4.1-Sn/K2
Port thread 22	M22 x 1.5 JED - 388
Port thread 23	M22 x 1.5 JED - 388
Port thread 3	Silencer 432 407 060 0
Calculated Volume (dm³)	2.4504
Port thread 21	M22 x 1.5 JED - 388
Rated current	320 mA
Protection class	IP 6K9K
Port thread 11	M22 x 1.5 JED - 388

WABCO 4728800000 Cross Reference

We have 8 alternatives for the 4728800000 by WABCO:

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
