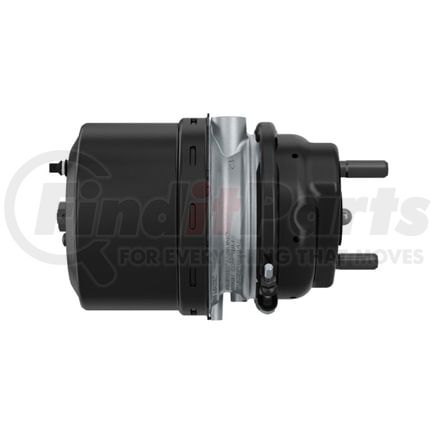

(888) 312-8812 Login SignupWABCO 9254601010 Parking Brake Actuator
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
WABCO 9254601010 Part Description
WABCO 9254601010 Specifications
Product Attributes
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Push-Rod Length | 15 mm |
| Type | 20/24 |
| Max. operating pressure | 10.2/8.5 bar |
| Temperature Range | -40°C to +80°C |
| Weight | 17.264 |
| Release Pressure | 5.1 bar |
| Calculated Volume (dm³) | 14.586 |
| Size | 390 x 187 x 200 |
| Total Length | 259.0 mm |
| Output Force M | 7010 N |
| Stroke | 64/64 mm |
| Type Of Operation | Disc |
| Return-Spring Force | 220 N |
| Opposite | 925 460 100 0 |
| Port thread 12 | M16 x 1.5 |
| Push-rod thread | Ball R8 |
| Bolt Threads | M16 x 1.5 |
| Bolt Lengths | 43.0 mm |
| Port thread 11 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
WABCO 9254601010 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9254601010 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
