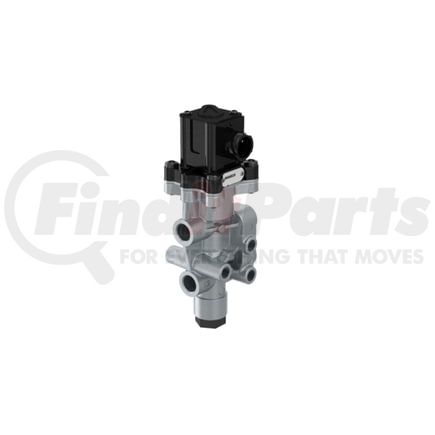

Name: WABCO 4630840310 Air Brake Control Valve
SKU: 4630840310
Price: 581.49 USD
Availability: InStock

WABCO part description

Lift Axle Control Valve

Product Attributes

Max. operating pressure	13.0 bar
Calculated Volume (dm³)	0.83226
Size	194 x 65 x 66
Port thread 21	2x M16 x 1.5
Protection class	IP 6K9K
Actuation	Electrical
Type	LACV
Rated current	220 mA
Port thread 22	2x M16 x 1.5
Port thread 11	M16 x 1.5
Temperature Range	-40°C to +80°C
Electrical connection	DIN 72585-A1-3.6-Sn/K1
Version	Single-circuit
Port thread 31	Flap exhaust
Voltage	24 V
Weight	1.4705

WABCO 4630840310 Cross Reference

We have 30 alternatives for the 4630840310 by WABCO:

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
