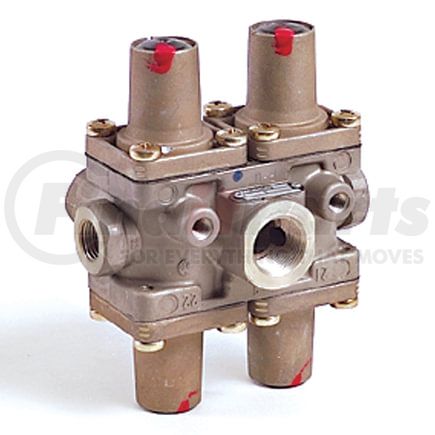

(888) 312-8812 Login SignupWABCO 9347020400 Air Brake Pressure Protection Valve - Quadruple Protection, Static, 145.0 psi
$96249
14 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 9347020400 Part Description
WABCO 9347020400 Specifications
Product Attributes
| Size | 145 x 149 x 111 |
| Max. operating pressure | 145.0 psi |
| Max. operating pressure | 145.0 psi |
| Weight | 2.2487 |
| Charging Pressure | 3 bar |
| Opening pressure 23 | 5.5 bar |
| Opening Pressure Circuit 1+2 | 5.5 + 5.5 bar |
| Temperature Range | -40°C to +90°C |
| Calculated Volume (dm³) | 2.3982 |
| Opening pressure 21 | 6 bar |
| Opening pressure 22 | 6 bar |
| Port thread 21 | M16 x 1.5 |
| Opening pressure 24 | 5.5 bar |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 1 | M22 x 1.5 |
| Pressure Sensor | No |
| Type | static |
WABCO 9347020400 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9347020400 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
