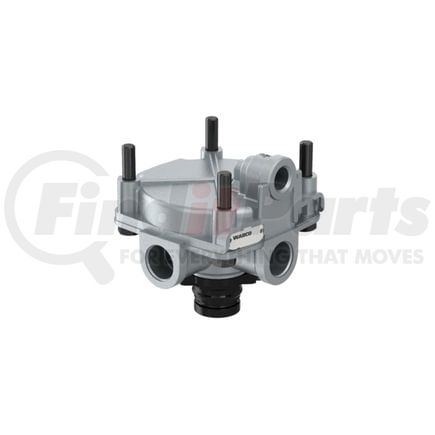

Name: WABCO 9730110000 Air Brake Relay Valve
SKU: 9730110000
Price: 242.99 USD
Availability: InStock

WABCO part description

Air Brake Relay Valve

Product Attributes

Predominance	0.20 bar
Weight	1.2985
Opening Pressure	0.2 bar
Calculated Volume (dm³)	1.132
Max. operating pressure	145.04 psi
Regulating Ratio	1:1
Max. operating pressure	10.0 bar
Port thread 2	2x M22 x 1.5
Size	101 x 101 x 111
Mounting	4x M8
Port thread 1	M22 x 1.5
Temperature Range	-40°C to +80°C
Version	Pressure reduction
Port thread 4	M16 x 1.5
Exhaust	Snap on contour JED - 463
Port thread 3	JED-463

WABCO 9730110000 Cross Reference

We have 25 alternatives for the 9730110000 by WABCO:

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
