CENTRIC 122.42901 Part Description
Manufacturer
Product Description

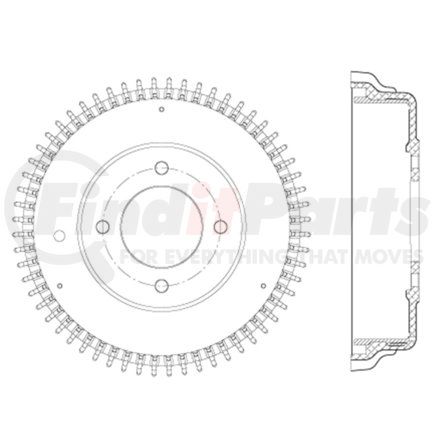

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.42901 Specifications
Product Attributes
| Notes [cntrc] | Aluminum Drum |
| Weight [cntrc] Kgs | 3.273 |
| Weight [cntrc] Lbs | 7.200 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Height [cntrc] Mm | 66.000 |
| Height [cntrc] In | 2.598 |
| Friction Surface Width [cntrc] Mm | 52.000 |
| Friction Surface Width [cntrc] In | 2.047 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 230.000 MM |
| Maximum Brake Diameter (Discard) | 9.055 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 11.800 MM |
| Mounting Hole Diameter | 0.465 IN |
| Nominal Drum Diameter | 228.300 MM |
| Nominal Drum Diameter | 8.988 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890720027 |
