CENTRIC 120.42109 Part Description
Manufacturer
Product Description

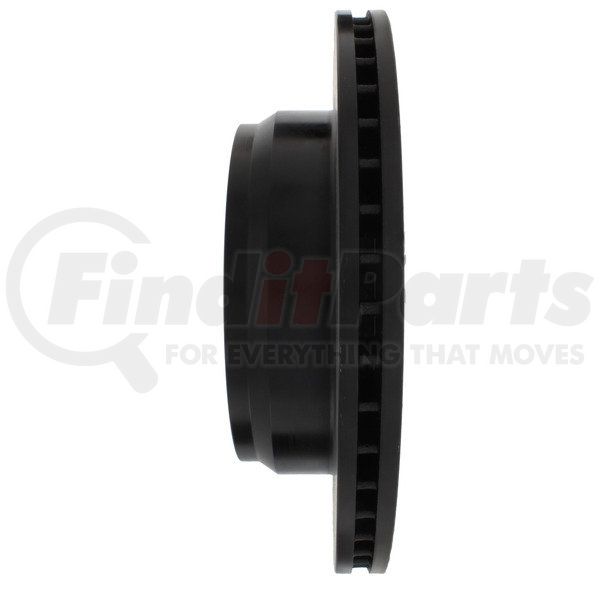

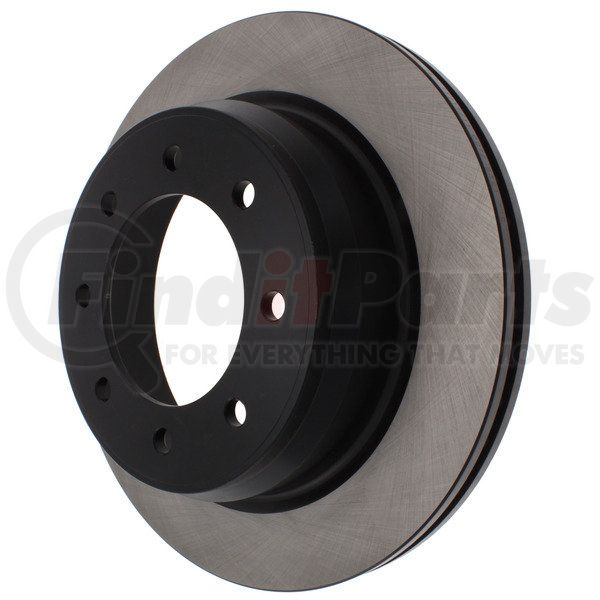

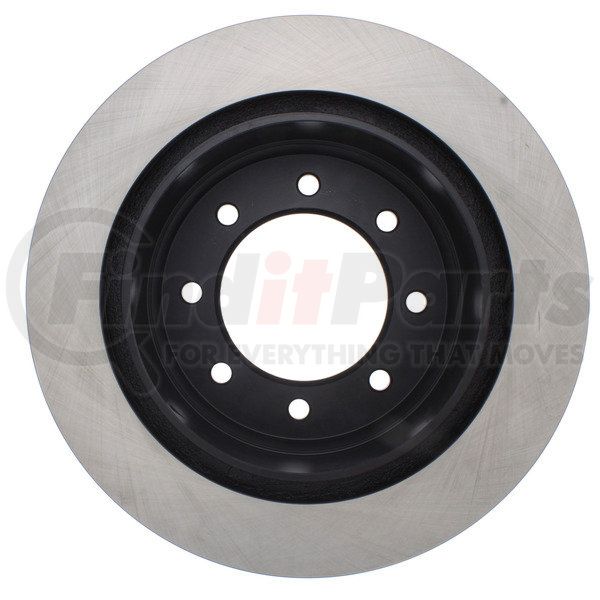

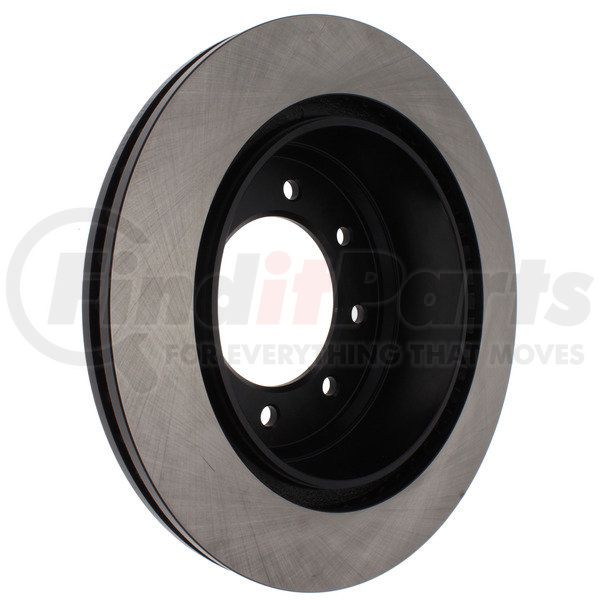

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.42109 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Hat Id [cntrc] In | 8.209 |
| Max Pb Drum Dia [cntrc] In | 8.965 |
| Weight [cntrc] Lbs | 30.400 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 208.500 |
| Max Pb Drum Dia [cntrc] Mm | 227.700 |
| Weight [cntrc] Kgs | 13.800 |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.500 MM |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30.000 MM |
| Hat Finish | Painted |
| Overall Height | 91.400 MM |
| Overall Height | 3.598 IN |
| Outside Diameter | 365.000 MM |
| Outside Diameter | 14.370 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 226.900 MM |
| Nominal Drum Diameter | 8.933 IN |
| Bearings Included | No |
| Center Hole Diameter | 123.000 MM |
| Center Hole Diameter | 4.843 IN |
| Mounting Bolt Hole Circle Diameter | 6.508 IN |
| Mounting Bolt Hole Circle Diameter | 165.300 MM |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 14.700 MM |
| Stud/Lug Hole Diameter | 0.579 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890716501 |
CENTRIC 120.42109 Cross References
| Brand | Part Number |
|---|---|
| 432061PA1A | |
| N/A | 850298, BD180485, E125-47-114, 44753, 0204362156, 90067101, E12547114, 60120, 432061PA1A, 432061PA1B |
| RAY | 980974 |
| RAYBESTOS | 980974, 980974FZN, 980974R, 980974R2 |
| Raybestos Brakes | 980974, 980974FZN, 980974R |
| WAGNER | BD125069, BD180485 |
CENTRIC 120.42109 Fits Vehicles
- Nissan NV3500 (2012-2021)
- Nissan NV2500 (2012-2021)
- Nissan NV1500 (2012-2021)
