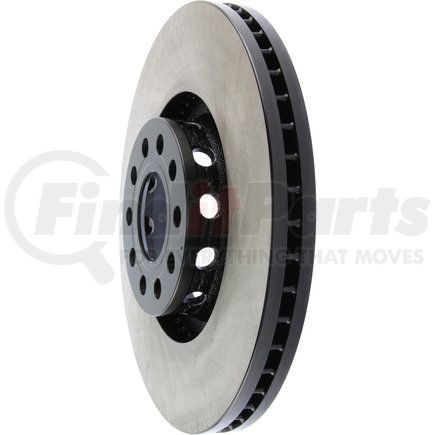

Centric 125.33077 - Centric Premium High Carbon Alloy Brake Rotor
$11049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Notes [cntrc] | Vented Hat |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Lbs | 24.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 11.140 |
| Discard Thickness | 27.000 MM |
| Discard Thickness | 1.063 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Hat Finish | Coated |
| Overall Height | 52.400 MM |
| Overall Height | 2.063 IN |
| Outside Diameter | 320.000 MM |
| Outside Diameter | 12.598 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.598 IN |
| Stud/Lug Hole Diameter | 15.200 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890729143 |
Part Interchanges
CENTRIC 125.33077 Cross Reference
We have 1 alternatives for the 125.33077 by CENTRIC:
Fits Vehicles
- Volkswagen Passat (2002-2004)
