CENTRIC 125.33074 Part Description
Manufacturer
Product Description

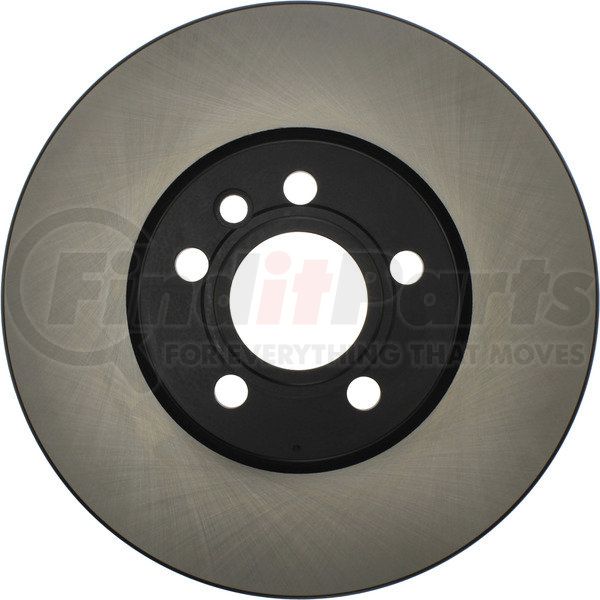

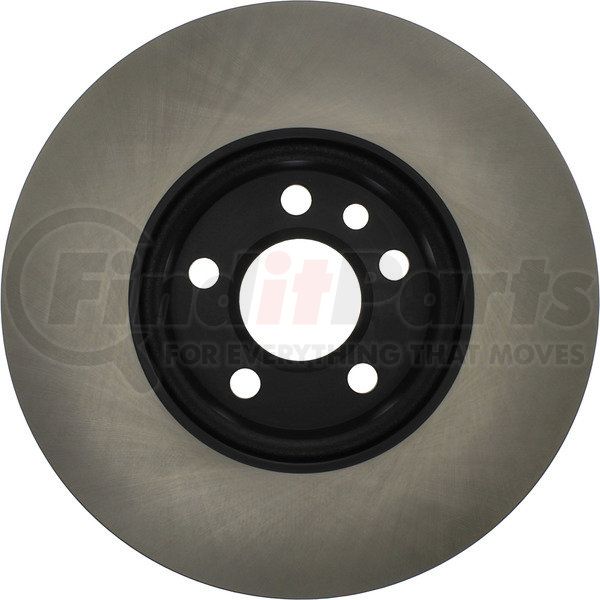

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
CENTRIC 125.33074 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 9.700 |
| Weight [cntrc] Lbs | 21.340 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Discard Thickness | 0.866 IN |
| Stud/Lug Hole Diameter | 0.654 IN |
| Stud/Lug Hole Diameter | 16.600 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.323 IN |
| Outside Diameter | 313.000 MM |
| Overall Height | 56.300 MM |
| Overall Height | 2.217 IN |
| Hat Finish | Coated |
| Nominal Thickness | 26.000 MM |
| Nominal Thickness | 1.024 IN |
| Discard Thickness | 22.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890729129 |
CENTRIC 125.33074 Cross References
CENTRIC 125.33074 Fits Vehicles
- Volkswagen Sharan (2002-2008)
- Volkswagen EuroVan (2001-2003)
