CENTRIC 122.61051 Part Description
Manufacturer
Product Description

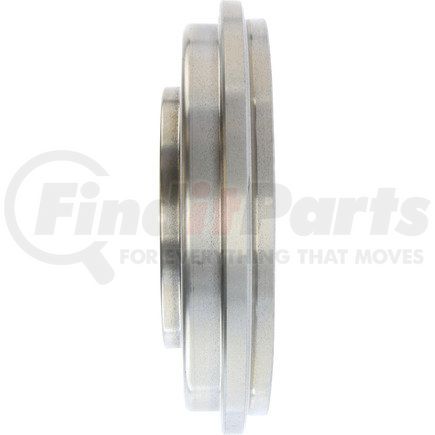

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.61051 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Kgs | 4.318 |
| Weight [cntrc] Lbs | 9.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Hub Hole / Register [cntrc] Mm | 63.500 |
| Hub Hole / Register [cntrc] In | 2.500 |
| Height [cntrc] Mm | 51.587 |
| Height [cntrc] In | 2.031 |
| Friction Surface Width [cntrc] Mm | 39.900 |
| Friction Surface Width [cntrc] In | 1.571 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 201.500 MM |
| Maximum Brake Diameter (Discard) | 7.933 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 244.300 MM |
| Outside Diameter | 9.618 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.000 MM |
| Mounting Hole Diameter | 0.551 IN |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890665632 |
CENTRIC 122.61051 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 97811R |
| N/A | BD920156, 920156, AE811113A, C1BC1126B, 22118, BRDF15, BRDF19, 35139, 35139G, BE8Z1126A, BE8Z1126B, C1BZ1126A, 75005, 860030, 36554040 |
CENTRIC 122.61051 Fits Vehicles
- Ford Fiesta (2011-2019)
CENTRIC 122.61051 Cross References
We have 1 alternatives for the 122.61051 by CENTRIC:
