CENTRIC part description

Product Description

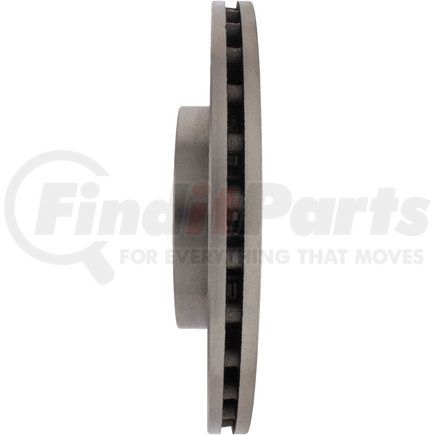

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Disc Mounting [cntrc] Floating
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Misc Holes [cntrc] 2
Weight [cntrc] Kgs 5.070
Weight [cntrc] Lbs 11.150
Product Grade [cntrc] Standard
Discard Thickness 20.000 MM
Discard Thickness 0.787 IN
Nominal Thickness 0.866 IN
Nominal Thickness 22.000 MM
Overall Height 40.600 MM
Overall Height 1.598 IN
Outside Diameter 257.200 MM
Outside Diameter 10.126 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 60.000 MM
Center Hole Diameter 2.362 IN
Mounting Bolt Hole Circle Diameter 100.000 MM
Mounting Bolt Hole Circle Diameter 3.937 IN
Stud/Lug Hole Quantity 4
Stud/Lug Hole Diameter 14.200 MM
Stud/Lug Hole Diameter 0.559 IN

Additional Information

Harmonized Tariff Code (HTS) 8708305030
Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890659884

Part Interchanges

Fits Vehicles

  • Fiat Strada (2007-2012)
  • Fiat Palio (2004-2010)
  • Fiat Punto (2007-2009)
