CENTRIC part description

Product Description

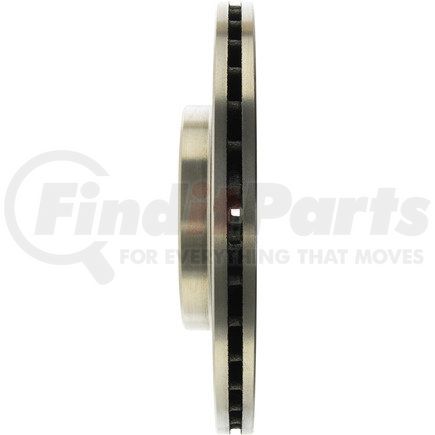

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Misc Holes [cntrc] 2
Disc Mounting [cntrc] Floating
Product Grade [cntrc] Standard
Weight [cntrc] Kgs 5.020
Weight [cntrc] Lbs 11.050
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Discard Thickness 0.697 IN
Discard Thickness 17.700 MM
Nominal Thickness 20.700 MM
Nominal Thickness 0.815 IN
Overall Height 40.000 MM
Overall Height 1.575 IN
Outside Diameter 259.000 MM
Outside Diameter 10.197 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 61.000 MM
Center Hole Diameter 2.402 IN
Mounting Bolt Hole Circle Diameter 3.937 IN
Mounting Bolt Hole Circle Diameter 100.000 MM
Stud/Lug Hole Quantity 4
Stud/Lug Hole Diameter 0.531 IN
Stud/Lug Hole Diameter 13.500 MM

Additional Information

Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890661672

Part Interchanges

Fits Vehicles

  • Renault Clio (2002-2010)
  • Nissan Platina (2002-2010)
  • Nissan Aprio (2008-2010)
  • Renault Kangoo Express (2004-2018)
  • Renault Stepway (2010-2015)
