CENTRIC part description

Product Description

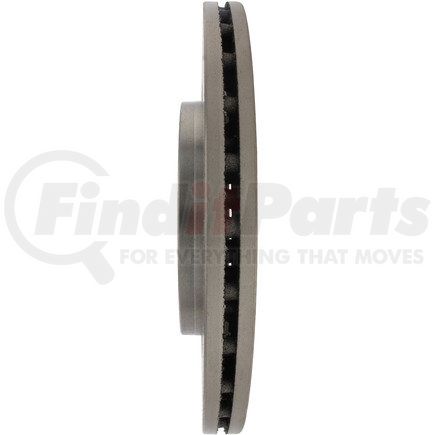

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Disc Mounting [cntrc] Floating
Misc Holes [cntrc] 1
Weight [cntrc] Lbs 11.750
Product Grade [cntrc] Standard
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Weight [cntrc] Kgs 5.340
Discard Thickness 0.764 IN
Discard Thickness 19.400 MM
Nominal Thickness 0.866 IN
Nominal Thickness 22.000 MM
Overall Height 35.400 MM
Overall Height 1.394 IN
Outside Diameter 275.900 MM
Outside Diameter 10.862 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 67.000 MM
Center Hole Diameter 2.638 IN
Mounting Bolt Hole Circle Diameter 112.000 MM
Mounting Bolt Hole Circle Diameter 4.409 IN
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 0.512 IN
Stud/Lug Hole Diameter 13.000 MM

Additional Information

Harmonized Tariff Code (HTS) 8708305030
Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890661368

Part Interchanges

Fits Vehicles

  • Mercedes-Benz A190 (2001-2005)
