CENTRIC 122.62041 Part Description
Manufacturer
Product Description

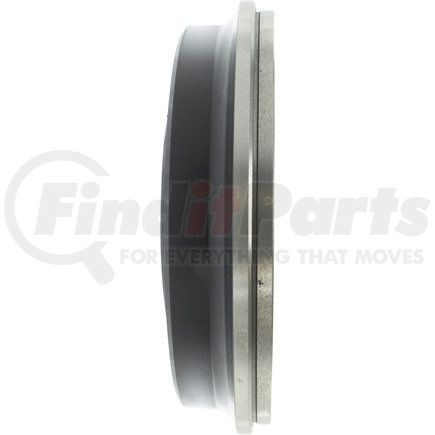

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.62041 Specifications
Product Attributes
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 5.659 |
| Weight [cntrc] Lbs | 12.450 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 105.000 |
| Bolt Circle Diameter [cntrc] In | 4.133 |
| Hub Hole / Register [cntrc] Mm | 60.000 |
| Hub Hole / Register [cntrc] In | 2.362 |
| Height [cntrc] Mm | 62.992 |
| Height [cntrc] In | 2.480 |
| Friction Surface Width [cntrc] Mm | 47.500 |
| Friction Surface Width [cntrc] In | 1.870 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 232.000 MM |
| Maximum Brake Diameter (Discard) | 9.134 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 274.000 MM |
| Outside Diameter | 10.787 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.100 MM |
| Mounting Hole Diameter | 0.555 IN |
| Nominal Drum Diameter | 230.000 MM |
| Nominal Drum Diameter | 9.055 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890785835 |
CENTRIC 122.62041 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 97841R |
| N/A | 860039, 122.62041, 21110, 36547030, 21110G, 123.62041, 95224012 |
CENTRIC 122.62041 Fits Vehicles
- Chevrolet Trax (2013-2019, 2022)
- Chevrolet Sonic (2012-2020)
CENTRIC 122.62041 Cross References
We have 1 alternatives for the 122.62041 by CENTRIC:
