(888) 312-8812 Login SignupCENTRIC 128.34088 Centric Premium OE Style Drilled Brake Rotor
Tap to view 4 more
MSRP: $462.53
$39899
Save $63.54
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
CENTRIC 128.34088 Part Description
Manufacturer
Product Description

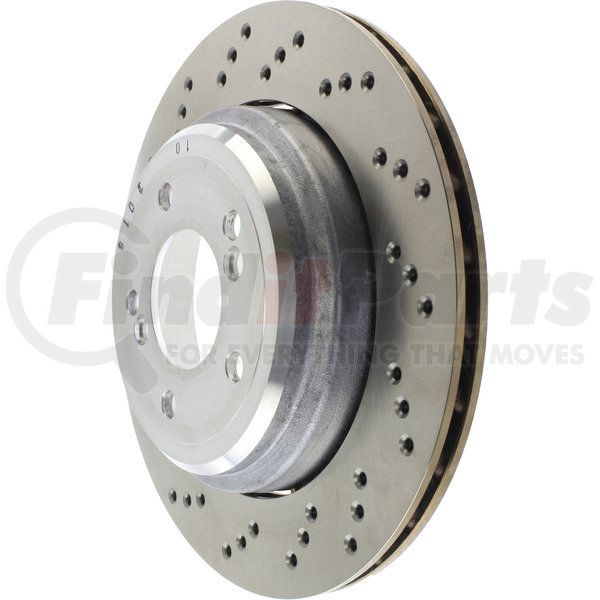

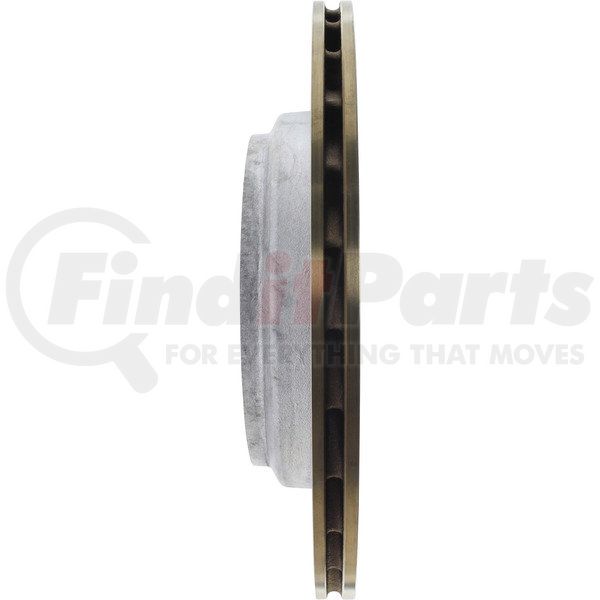

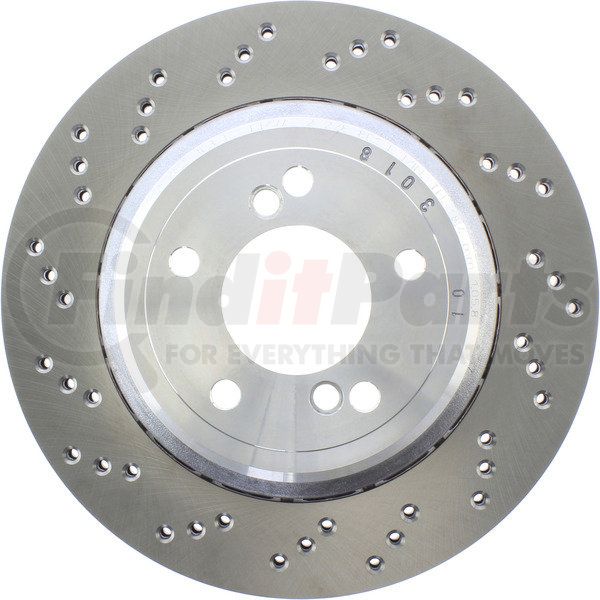

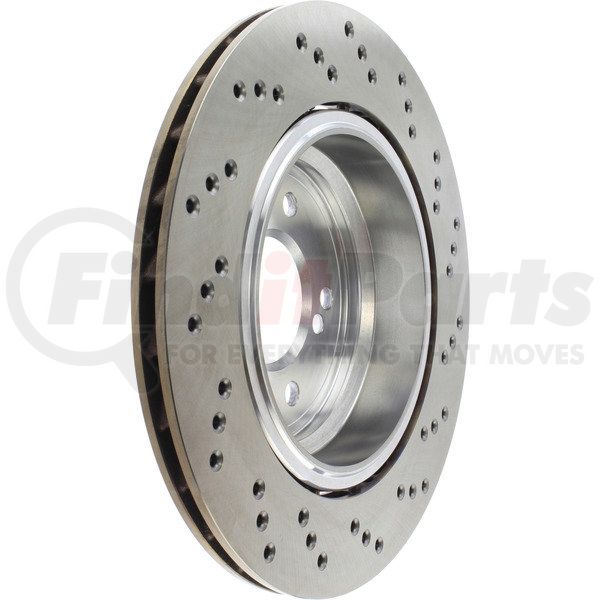

Centric Premium OE Style Drilled Brake Rotor
Features & Benefits
- Premium rotors feature 100% fully machined finishes including rotor hats. This extra process provides better rotor balance and creates a cleaner; more finished looking component
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 128.34088 Specifications
Product Attributes
| Weight [cntrc] Lbs | 14.700 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Curved |
| Weight [cntrc] Kgs | 6.680 |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 18.400 MM |
| Discard Thickness | 0.724 IN |
| Nominal Thickness | 0.780 IN |
| Nominal Thickness | 19.800 MM |
| Hat Finish | Coated |
| Overall Height | 61.200 MM |
| Overall Height | 2.409 IN |
| Outside Diameter | 12.913 IN |
| Outside Diameter | 328.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 185.000 MM |
| Nominal Drum Diameter | 7.283 IN |
| Bearings Included | No |
| Center Hole Diameter | 75.000 MM |
| Center Hole Diameter | 2.953 IN |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | DE |
| UPC | 00805890655947 |
CENTRIC 128.34088 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 420221 |
| N/A | 95791, 92031078D, 228.34088, 34212282303 |
CENTRIC 128.34088 Fits Vehicles
- BMW M3 (2006)
- BMW Z4 (2006-2008)
