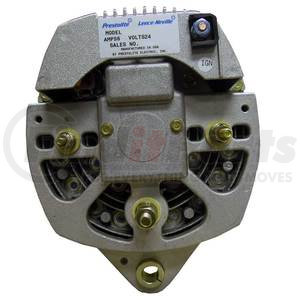

Name: Leece Neville 110-431 Alternator - 24V, 150A, D+ Terminal, 108mm Fix Circle, J180 Mounting, Clockwise Rotation
SKU: 110431
Price: 985.49 USD
Availability: InStock

LEECE NEVILLE part description

Item number:8SC3160V
Sales number:110-431
Series number:8SC/SCJ
Notes:D+ TERMINALINGITION EXCITEFIX CIRCLE (MOUNT): 108MMFIX CIRCLE (ADJUSTER): 98.8MMBRACKET ANGLE: 0&DEG;CUT IN SPEED: 1400, MAX SPEED: 8000 INTERMITTENT, 6000 MAX SPEED CONTINUOUSWEIGHT: 13.61KG, ADJUSTABLE VOLTAGE REGULATOR
System voltage:24
Output:150
Mounting style:J180
Dimensions in:INCHES
Rotation:CLOCKWISE
Housing coating:RAW
UL Approved:No
Mounting bolt size:.505-.520
Mounting ear size:1/2-13
Mounting holes:3
Positive stud:5/16-24
Negative stud:1/4-28
Rectifier location:INTERNAL
Shaft diameter:.8740-.8745
Regulator location:Integral
Regulator number:8RL3136

LEECE NEVILLE 110-431 Cross Reference

We have 3 alternatives for the 110-431 by LEECE NEVILLE:

A division of Prestolite Electric Incorporated, Leece-Neville® is a well-known supplier of starters, alternators, and other electrical equipment for transportation, industrial, and military applications. This brand shares the same "Easy to do Business" philosophy with Prestolite and the same manufacturing and distribution centers in America, Europe, Canada, China, Hong Kong, and Mexico. With an industry history that dates back to 1919, Leece-Neville has its glory days in the production of electrical starters, voltage regulators, and generators for trucks, airplanes, as well as industrial and marine equipment during the World War II. In July 1987, Leece-Neville was acquired by Prestolite Electric, which widened its reach to the international market and made the Leece-Neville name globally recognized.
