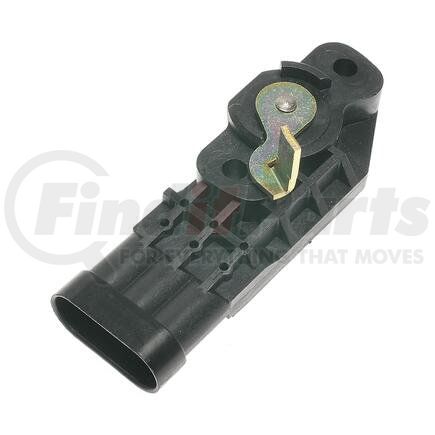

Standard Ignition TH5 - Throttle Position Sensor
- Part Number
- TH5
- Manufacturer
- STANDARD IGNITION
- Description
-
Throttle Position Sensor
details
$6149
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Throttle Position Sensor
Features & Benefits
- Our Throttle Position Sensors maintain specific installed outputs to match OE rather than adjustable consolidated designs
- Circuits are printed on flexible polyimide film or ceramic-based substrates for excellent dimensional stability preventing electrical performance drift. Noble palladium/gold/platinum alloys provide low contact resistance for extended service life
- Each TPS uses integral rotor bearings and return springs for easy installation
- Each sensor undergoes rigorous end-of-line testing with thousands of data points to validate output voltages for optimum performance and trouble-free operation
- Featuring the broadest sensor coverage in the market, we meet the service professionals needs with the highest quality product every time he opens the box
- As a global manufacturer of emission components, complete quality control is maintained through the manufacturing process from componentry to finished product
Product Attributes
| Connector Gender | Male |
| Connector Quantity | 1 |
| Terminal Gender | Female |
| Terminal Quantity | 3 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8533408040 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769030490 |
Part Interchanges
- CARQUEST Standard 38001
- Delphi SS10452
- Echlin 2-1986
- Kem 141-402
- NGK 75361
- NGK TH0031
- ACDelco 17078274
- ACDelco 19187341
- ACDelco 213-4387
- ACDelco 213-893
- BWD EC1001
- Advan-tech 6N2
- Duralast TPS101
- Duralast TPSA74
- General Motors 17078274
- General Motors 17081077
- General Motors 17110581
- General Motors 17110632
- General Motors 17110648
- Walker Products 200-1377
- Airtex 5S5034
- NAPA Mileage Plus 3-1986
- T Series TH5T
- Tomco 14050
- CARQUEST Premium By WELLS 71-7529
- Carquest Premium Vehicle Solutions ECC1341
- TPSGM012
Fits Vehicles
- Chevrolet Citation (1983)
- Chevrolet Astro (1985-1986)
- Buick Somerset Regal (1985)
- Buick Somerset (1986)
- GMC Safari (1985-1986)
- Pontiac Sunbird (1986)
- Pontiac Acadian (1982-1986)
- Pontiac J2000 Sunbird (1984-1985)
- Pontiac J2000 (1982-1983)
- Pontiac Grand Am (1985-1986)
- Pontiac Phoenix (1983-1984)
- Pontiac Firebird (1983-1985)
- Pontiac Fiero (1984-1986)
- Pontiac 6000 (1983-1986)
- Oldsmobile Firenza (1985-1986)
- Oldsmobile Cutlass Ciera (1985-1986)
- Oldsmobile Calais (1985-1986)
- GMC S15 (1985-1986)
- GMC S15 Jimmy (1985-1986)
- Chevrolet S10 (1985-1986)
- Chevrolet S10 Blazer (1985-1986)
- Chevrolet Citation II (1984-1985)
- Chevrolet Celebrity (1983-1986)
- Chevrolet Camaro (1983-1986)
- Buick Skylark (1983-1986)
- Buick Skyhawk (1982-1986)
- Buick Century (1983-1986)
