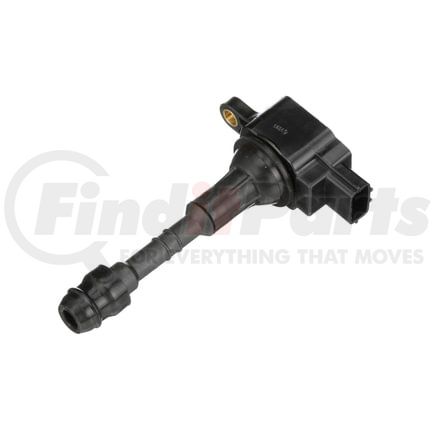

Standard Ignition UF-510 - Coil on Plug Coil
- Part Number
- UF-510
- Manufacturer
- STANDARD IGNITION
- Description
-
Coil on Plug Coil
details
$3999
MSRP: $158.50
Save: $118.51
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
STANDARD IGNITION part description
Product Description
Coil on Plug Coil
Features & Benefits
- 100% pure copper windings in primary and secondary bobbins improve durability and provide higher resistance to internal shorts and dielectric breakdown
- Electronic ignition module profile and feedback signal ensures proper OE fit, form, and function
- Thermoplastic housing withstands heat stress for enhanced durability
- Internal core made from grain-oriented electrical steel limits loss factor within magnetic circuit to reduce heat that may reduce coil endurance
- Samarium-Cobalt (SmCo) magnet produces max high voltage output at all speeds
- Stainless steel spring resists corrosion
- Tin-plated brass terminals improve electrical contact and protect against corrosion
- High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or thermal breakdown
- Silicone rubber boot withstands extreme heat to ensure superior insulation
- Advanced bobbin technology, highly specialized silicone magnetic steel core, and optimized winding all provide an accurate high energy output to restore engine performance
- Engineered and tested to meet OE spark energy output, impedance, and durability in all operating conditions.
- Engineered specifically for INFINITI and Nissan vehicles
- High-dielectric epoxy injected into case and pulled into vacuum to eliminate air pockets and prevent moisture intrusion or internal energy loss
- High-temp boot prevents high-voltage leaks, while stainless-steel spring with internal ferrite noise suppressor prevents radiofrequency interference (RFI)
- Manufactured in Poland
- Our ignition coils use 100% pure copper windings in the primary and secondary bobbins to improve durability and provide higher resistance to internal shorts and dielectric breakdown
Product Attributes
Voltage | 12 |
Color | Black |
Mounting Position | Distributorless |
Ignition Type | Distributorless |
Coil Type | Electronic |
Terminal Type | Blade |
Mounting Hardware Included | No |
Connector Quantity | 1 |
Connector Shape | Rectangular |
Connector Type | Plug In |
Mount Type | Bolt On |
Terminal Quantity | 3 |
Connector Gender | Female |
Terminal Gender | Male |
Mounting Bracket Included | Yes |
Coil Included | Yes |
Grease Pack | No |
Instructions Included | No |
Notes | Complete Assembly |
Additional Information
Country of Origin (Primary) | PL |
Harmonized Tariff Code (HTS) | 8511300080 |
Warranty Distance | 36000 |
Warranty Distance UOM | MI |
Warranty Time | 36 |
Warranty Time UOM | MO |
UPC | 00707390328812 |
Part Interchanges
- Beck/Arnley 178-8335
- Delphi GN10243
- Echlin IC590
- NGK 48969
- NGK U5299
- Spectra Premium C-719
- Motorad 1IC247
- Original Engine Management 50079
- PRENCO 36-8100
- Autopart International 2505-204770
- Hitachi Automotive IGC0004
- BWD E1010
- Duralast C1483
- Duralast C1483-8
- MasterPro 2-50079
- Walker Products 921-2095
- Airtex 5C1482
- NAPA Mileage Plus IC590SB
- T Series UF510T
- DENSO 673-4021
- Import Direct 23-0106
- TPI True Parts Incorporated CLS1197
- BWD Intermotor E1010
- CARQUEST Premium By WELLS 52-1802
- Cartek 50079
- Nissan 224487S015
- Import Direct Ignition 23-0106
- Carquest Premium Vehicle Solutions EBC1041
- SKIC107
- CUF510
Fits Vehicles
- Nissan Pathfinder Armada (2004)
- Nissan TITAN (2004-2007)
- Nissan Armada (2005-2006)
- INFINITI QX56 (2004-2006)
