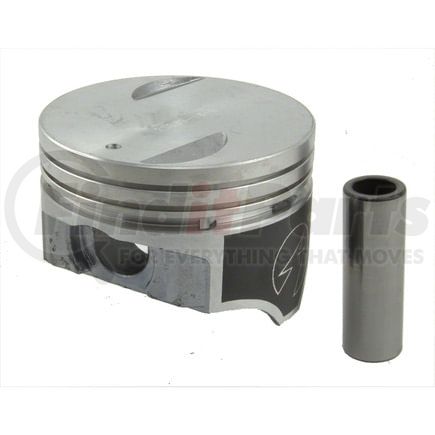

Sealed Power WH661CP - Sealed Power WH661CP Engine Piston
- Part Number
- WH661CP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power WH661CP Engine Piston
details
$5199
MSRP: $92.66
Save: $40.67
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD(R) skirt-coated piston
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9893 IN |
| Piston Head Type | Flat |
| Assembly Lubricant Included | No |
| Cylinder Bore Diameter | 4.2500 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.625 IN |
| Dome Volume CC | Negative 002.0 |
| Head Illustration | 5 |
| Head Type | Flat Head w/2 valve reliefs; Use E424K30 ring set for H661CP100; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Part Alert | Use in sets only |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Weight W Pin Gram | 00730.+/- 00. |
| Cylinder Bore Diameter | 107.95 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 25.128 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046660410 |
Part Interchanges
Fits Vehicles
- GMC P3500 (1979-1983)
- GMC P35 (1975-1978)
- GMC P1500 (1979)
- GMC K3500 (1979-1983)
- GMC K25 Suburban (1976-1977)
- GMC K25 (1976-1978)
- GMC K1500 (1980)
- GMC K15 (1976)
- GMC G35 (1976)
- GMC G25 (1975-1976)
- GMC C3500 (1979-1983)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1983)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1983)
- GMC C25 (1975-1978)
- GMC C1500 Suburban (1979-1980)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1980)
- GMC C15 (1975-1978)
- Chevrolet Townsman (1970-1972)
- Chevrolet P30 Van (1973-1974)
- Chevrolet P20 Van (1973)
- Chevrolet P10 Van (1973)
- Chevrolet Nova (1970-1971)
- Chevrolet Kingswood (1970-1972)
- Chevrolet K30 Pickup (1973-1974)
- Chevrolet K20 Suburban (1973-1974)
- Chevrolet K20 Pickup (1973-1974)
- Chevrolet K10 Suburban (1973-1974)
- Chevrolet K10 Pickup (1973-1974)
- Chevrolet G30 Van (1973-1974)
- Chevrolet G20 Van (1973-1974)
- Chevrolet G10 Van (1973-1974)
- Chevrolet Corvette (1970-1974)
- Chevrolet Chevelle (1970-1973)
- Chevrolet C30 Pickup (1973-1974)
- Chevrolet C20 Pickup (1973-1974)
- Chevrolet C10 Pickup (1973-1974)
- Chevrolet Brookwood (1970-1972)
- Chevrolet Blazer (1973-1974)
- Chevrolet Biscayne (1970-1972)
- Pontiac Strato-Chief (1970)
- Pontiac Parisienne (1970)
- Pontiac Laurentian (1970)
- Chevrolet Estate (1970)
- Pontiac Acadian (1970-1971)
- GMC Sprint (1973-1975)
- GMC P35/P3500 Van (1973-1974)
- GMC K35/K3500 Pickup (1973-1974)
- GMC K25/K2500 Suburban (1973-1974)
- GMC K25/K2500 Pickup (1973-1974)
- GMC K15/K1500 Suburban (1973-1974)
- GMC K15/K1500 Pickup (1973-1974)
- GMC Jimmy (1973-1974, 1976)
- GMC G35/G3500 Van (1973-1974)
- GMC C35/C3500 Pickup (1973-1974)
- GMC C25/C2500 Suburban (1973-1974)
- GMC C25/C2500 Pickup (1973-1974)
- GMC C15/C1500 Suburban (1973-1974)
- GMC C15/C1500 Pickup (1973-1974)
- Chevrolet P30 (1975-1983)
- Chevrolet P20 (1976, 1979)
- Chevrolet Monte Carlo (1970-1975)
- Chevrolet Malibu (1973-1975)
- Chevrolet Laguna (1973-1975)
- Chevrolet K30 (1977, 1980-1983)
- Chevrolet K20 (1976-1978)
- Chevrolet K10 (1976, 1980)
- Chevrolet Impala (1970-1976)
- Chevrolet G30 (1975-1976)
- Chevrolet G20 (1976)
- Chevrolet El Camino (1973-1975)
- Chevrolet Caprice (1970-1976)
- Chevrolet C30 (1975-1983)
- Chevrolet C20 Suburban (1973-1983)
- Chevrolet C20 (1975-1983)
- Chevrolet C10 Suburban (1973-1980)
- Chevrolet C10 (1975-1980)
- Chevrolet K5 Blazer (1976-1978)
- Chevrolet Bel Air (1970-1975)
