Sealed Power 4-1140RA - Sealed Power 4-1140RA Engine Connecting Rod Bearing Set
- Part Number
- 4-1140RA
- Manufacturer
- SEALED POWER
- Description
-

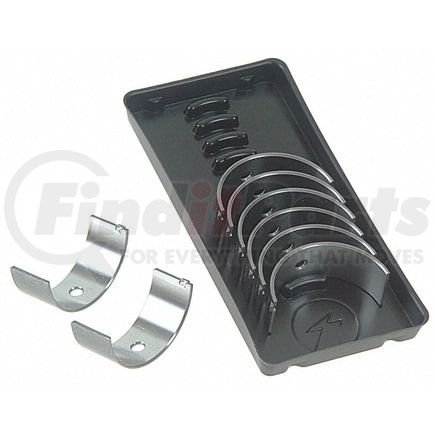

Sealed Power 4-1140RA Engine Connecting Rod Bearing Set
details
$5499
MSRP: $96.82
Save: $41.83
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Connecting Rod Bearing Set
Features & Benefits
- A-Series bi-metal aluminum alloy
- Greater seizure resistance than tri-metal material
- Dramatically reduces or eliminates bearing wear
- Made with silicon to provide greater surface hardness
- Silicon particles help polish crankshaft journal to further reduce wear during operation
- Utilizes ISO & QS certified manufacturing
Product Attributes
| Design Feature 1 | Standard Size |
| Housing Bore Max (inch) | 1.7721 IN |
| Housing Bore Max (mm) | 45.0110 MM |
| Housing Bore Min (inch) | 1.7716 IN |
| Housing Bore Min (mm) | 44.9990 MM |
| Oil Clearance Max (inch) | 0.0023 IN |
| Oil Clearance Max (mm) | 0.0580 MM |
| Oil Clearance Min (inch) | 0.0007 IN |
| Oil Clearance Min (mm) | 0.0180 MM |
| Overall Length Max (inch) | 0.7130 IN |
| Overall Length Max (mm) | 18.1100 MM |
| Part Description | Engine Connecting Rod Bearing Set |
| Standard Shaft Max (inch) | 1.6535 IN |
| Standard Shaft Max (mm) | 41.9990 MM |
| Standard Shaft Min (inch) | 1.6530 IN |
| Standard Shaft Min (mm) | 41.9860 MM |
| Wall Thickness Max (inch) | 0.0587 IN |
| Wall Thickness Max (mm) | 1.4910 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | JP |
| Canadian Harmonizing Tariff Code | 8483300022 |
| Harmonized Tariff Code (Schedule B) | 8483308090 |
| Harmonized Tariff Code (HTS) | 8483308090 |
| UPC | 00724956219650 |
Part Interchanges
- ACL 4B8336
- Beck/Arnley 014-6373
- Enginetech BC2404
- ITM Engine Components 4B-8336
- Suzuki 12100-82810J
- Suzuki 12181-82810
- TRW Steering and Suspension Parts CB-1140AL
- Beck/Arnley 0146373
- Sealed Power CB1810AL
- Sealed Power CB1810S
- ITM Engine Components 4B8336
- King Engine Bearings CR4020AM
- Topline RBSZ2
- Taiho R656A
- Suzuki 1210082810J
- Suzuki 1218182810
- TRW Steering and Suspension Parts CB1140AL
Fits Vehicles
- Geo Metro (1992-1997)
- Pontiac Firefly (1994-2000)
- Chevrolet Metro (1992, 1998-2001)
- Suzuki Swift (1989-2001)
- Suzuki Sidekick (1989)
- Suzuki Samurai (1986-1995)
