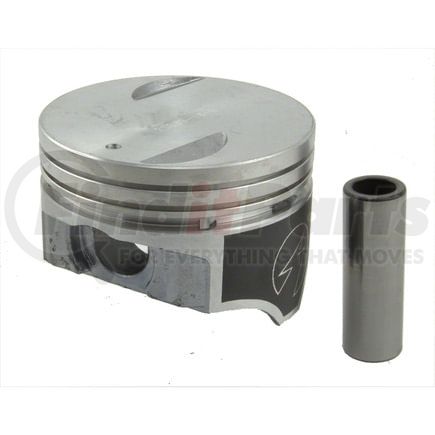

Sealed Power H749CP - Sealed Power H749CP Engine Piston Set
- Part Number
- H749CP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power H749CP Engine Piston Set
details
$36792
Package Price for 8 Units
@ $45.99 per unit
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD(R) skirt-coated piston
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9893 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.2500 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.625 IN |
| Head Illustration | 5 |
| Head Type | Flat Head w/2 valve reliefs; Use w/E553K ring set; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.04 |
| Pin Offset (MM) | 1.016 |
| Pin Type | P |
| Weight W Pin Gram | 00792.+/- 00. |
| Bore Diameter | 107.95 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 25.128 MM |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046273894 |
Part Interchanges
Fits Vehicles
- GMC P3500 (1996-1999)
- GMC K3500 (1996-2000)
- GMC K2500 Suburban (1996-1999)
- GMC K2500 (1996-2000)
- GMC Savana 3500 (1996-2000)
- GMC G3500 (1996)
- GMC C3500 (1996-2000)
- GMC C2500 Suburban (1996-1999)
- GMC C2500 (1996-2000)
- Chevrolet C3500HD (1996-2000)
- Chevrolet P30 (1996-1999)
- Chevrolet K3500 (1996-2000)
- Chevrolet K2500 Suburban (1996-1999)
- Chevrolet K2500 (1996-2000)
- Chevrolet G30 (1996)
- Chevrolet Express 3500 (1996-2000)
- Chevrolet C3500 (1996-2000)
- Chevrolet C2500 Suburban (1996-1999)
- Chevrolet C2500 (1996-2000)
