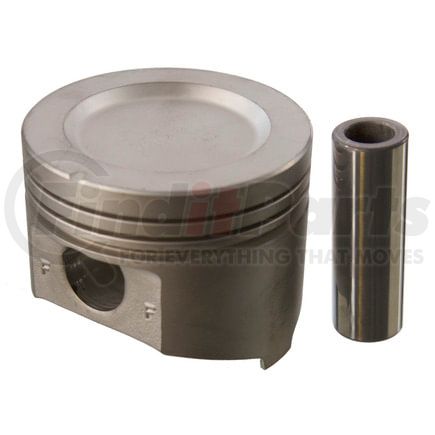

Sealed Power 520P - Sealed Power 520P Engine Piston Set
- Part Number
- 520P
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 520P Engine Piston Set
details
$4449
MSRP: $63.82
Save: $19.33
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Application Summary
1989-1988 FO V6 2935cc 2.9L; 1992-1986 FOT L/D V6 2935cc 2.9L
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 1.60 MM |
| Second Compression Ring Thickness | 1.75 MM |
| Oil Ring Thickness | 3.50 MM |
| Piston Pin Outside Diameter | 0.9447 IN |
| Piston Pin Outside Diameter | 23.995 MM |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.6614 IN |
| Bore Diameter | 93.0 MM |
| Piston Material | Cast Aluminum |
| 9607 | 1.525 IN |
| Head Illustration | 28 |
| Head Type | Recessed Head .165 deep x 2.580 dia. - 9.0:1 C.R. |
| Minimum Clearance | 0.001 @ 2.120 from top of head |
| Part Description | Engine Piston Set |
| Pin Offset (Inch) | 0.03 |
| Pin Offset (MM) | 0.762 |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00724956361847 |
Part Interchanges
- P767-STD
- 520P
- Badger P767-STD
- Badger P767
- TRW Steering and Suspension Parts L3203F
- Clevite TC2699
- Clevite 91199
- Silvolite 1199
- Ford 86TM-6102AAC
- Ford E7RY-6102A
- Ford 86TM-6102AAB
- Ford E6TZ-6100A
- Ford FORY-6102A
- Enginetech P1564
- Ertel 1232P
- Dana Commercial Vehicle Service Parts 2242370
- Dana Commercial Vehicle Service Parts TC2699
- Dana Commercial Vehicle Service Parts 224-2699
- Badger P767STD
- Sealed Power 9132P
- Dana Commercial Vehicle Service Parts 2242699
- Ford 86TM6102AAB
- Ford 86TM6102AAC
- Ford E6TZ6100A
- Ford E7RY6102A
- Ford FORY6102A
- Hi-Tech Engine Components P767STD
Fits Vehicles
- Ford Bronco II (1986-1990)
- Merkur Scorpio (1988-1989)
- Ford Ranger (1986-1992)
