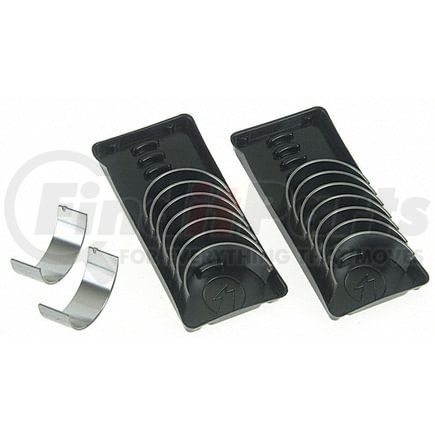

(888) 312-8812 Login SignupSEALED POWER 82555A Sealed Power 8-2555A Engine Connecting Rod Bearing Set
MSRP: $69.56
$4549
Save $24.07
Limited availability at this price!
In Stock
Get it by Friday, Feb 13
SEALED POWER 82555A Part Description
Manufacturer
Product Description
Engine Connecting Rod Bearing Set
Features & Benefits
- A-Series bi-metal aluminum alloy
- Greater seizure resistance than tri-metal material
- Dramatically reduces or eliminates bearing wear
- Made with silicon to provide greater surface hardness
- Silicon particles help polish crankshaft journal to further reduce wear during operation
- Utilizes ISO & QS certified manufacturing
SEALED POWER 82555A Specifications
Product Attributes
| Design Feature 1 | Standard Size Standard |
| Housing Bore Max (inch) | 2.2252 IN |
| Housing Bore Max (mm) | 56.5200 MM |
| Housing Bore Min (inch) | 2.2247 IN |
| Housing Bore Min (mm) | 56.5070 MM |
| Oil Clearance Max (inch) | 0.0028 IN |
| Oil Clearance Max (mm) | 0.0710 MM |
| Oil Clearance Min (inch) | 0.0005 IN |
| Oil Clearance Min (mm) | 0.0130 MM |
| Overall Length Max (inch) | 0.8420 IN |
| Overall Length Max (mm) | 21.3900 MM |
| Part Description | Engine Connecting Rod Bearing Set |
| Standard Shaft Max (inch) | 2.1000 IN |
| Standard Shaft Max (mm) | 53.3400 MM |
| Standard Shaft Min (inch) | 2.0990 IN |
| Standard Shaft Min (mm) | 53.3150 MM |
| Wall Thickness Max (inch) | 0.0622 IN |
| Wall Thickness Max (mm) | 1.5800 MM |
| Grade Type | Premium |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8483300022 |
| Harmonized Tariff Code (Schedule B) | 8483308090 |
| Harmonized Tariff Code (HTS) | 8483308090 |
| UPC | 00087674958387 |
| VMRS Code | 045006003 |
SEALED POWER 82555A Cross References
| Brand | Part Number |
|---|---|
| CLEVITE ENGINE PARTS | CB-663A(8), CB663A(8) |
| Clevite | CB663A(8), CB663A8 |
| DNJ | RB3104 |
| Enginetech | BB253JSTD |
| ITM Engine Components | 8B6956-STD |
| King Engine Bearings | CR807SI |
| MAHLE CLEVITE | CB663A(8) |
| SEALED POWER | 8-2555A |
SEALED POWER 82555A Fits Vehicles
- Chevrolet Silverado 1500 LTD (2022)
- Pontiac Sunbird (1978-1979)
- Pontiac Phoenix (1977-1979)
- Pontiac LeMans (1976-1981)
- Pontiac Grand Am (1978-1980)
- Pontiac Firebird (1977-2002)
- Pontiac Catalina (1980-1981)
- Pontiac Bonneville (1983-1986)
- Oldsmobile Starfire (1977-1979)
- Oldsmobile Omega (1977-1979)
- Oldsmobile Delta 88 (1977, 1981-1982)
- Oldsmobile Cutlass Supreme (1978-1980, 1982-1983, 1985-1987)
- Oldsmobile Cutlass Cruiser (1980, 1982-1983)
- Oldsmobile Cutlass Calais (1978-1980, 1982-1984)
- Oldsmobile Cutlass Salon (1978-1980)
- Oldsmobile Custom Cruiser (1977, 1991-1992)
- GMC V3500 (1987-1991)
- GMC V2500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC V1500 (1987)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC R1500 Suburban (1987-1991)
- GMC R1500 (1987)
- GMC P3500 (1979-1999)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC K3500 (1979-1986, 1988-2000)
- GMC K35 (1977-1978)
- GMC K2500 Suburban (1979-1986, 1992-1999)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1986, 1988-2000)
- GMC K25 (1975-1978)
- GMC K1500 Suburban (1979-1986, 1992-1999)
- GMC K15 Suburban (1975-1978)
- GMC K1500 (1979-1986, 1988-1999)
- GMC K15 (1975-1978)
- GMC G3500 (1979-1996)
- GMC G35 (1975-1978)
- GMC G2500 (1979-1995)
- GMC G25 (1975-1978)
- GMC G1500 (1979-1995)
- GMC G15 (1975-1978)
- GMC Caballero (1978-1987)
- GMC C3500 (1979-1986, 1988-2000)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986, 1992-1999)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986, 1988-2000)
- GMC C25 (1975-1978)
- GMC C1500 Suburban (1979-1986, 1992-1999)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1986, 1988-1999)
- GMC C15 (1975-1978)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet Townsman (1969-1972)
- Chevrolet P30 Van (1968-1974)
- Chevrolet P20 Van (1968-1974)
- Chevrolet P10 Van (1973)
- Chevrolet Kingswood (1969-1972)
- Chevrolet K30 Pickup (1968-1974)
- Chevrolet K20 Pickup (1968-1974)
- Chevrolet K10 Pickup (1968-1974)
- Chevrolet G20 Van (1968-1974)
- Chevrolet G10 Van (1968-1974)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1968-1973)
- Chevrolet C30 Pickup (1968-1974)
- Chevrolet C20 Pickup (1968-1974)
- Chevrolet C10 Pickup (1968-1974)
- Chevrolet Brookwood (1969-1972)
- Chevrolet Biscayne (1968-1972)
- Pontiac Grand LeMans (1976-1983)
- GMC C7000 (1979)
- GMC P6000 (1984-1990)
- Chevrolet Suburban 3500 HD (2016-2019)
- GMC Sierra 1500 HD Classic (2007)
- Chevrolet Silverado 1500 HD Classic (2007)
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- GMC Yukon XL (2015-2023)
- Chevrolet Suburban (2015-2023)
- Chevrolet Commercial Chassis (1991-1994)
- GMC C3500HD (1991-1995)
- Chevrolet C3500HD (1991-1995)
- Chevrolet P60 (1983-1990)
- Cadillac Escalade EXT (2002-2013)
- Cadillac Escalade ESV (2003-2016)
- Chevrolet Trailblazer EXT (2003-2006)
- GMC Envoy XL (2003-2006)
- GMC Envoy XUV (2004-2005)
- Chevrolet SS (2014-2015)
- Isuzu NPR (1993-2000)
- GMC Savana 4500 (2010-2019)
- Chevrolet Express 4500 (2010-2019)
- Chevrolet Estate (1969-1970)
- Checker Taxicab (1969-1974)
- Pontiac Strato-Chief (1968-1970)
- Pontiac Laurentian (1968-1974, 1977-1981)
- Pontiac Beaumont (1968-1969)
- Checker Aerobus (1966-1974)
- GMC B6000 (1980-1990)
- Chevrolet B60 (1980-1990)
- Hummer H3T (2009-2010)
- GMC Canyon (2009-2012)
- Chevrolet Colorado (2009-2012)
- Buick Allure (2008-2009)
- GMC W4500 Forward (1998-2000)
- Chevrolet W4500 Tiltmaster (1993-2000)
- Hummer H3 (2008-2010)
- Pontiac G8 (2008-2009)
- Chevrolet G30 Van (1970-1974)
- GMC Sierra 3500 HD (2007-2019)
- Chevrolet Silverado 3500 HD (2007-2019)
- Buick LaCrosse (2008-2009)
- Checker Deluxe (1969-1970)
- Pontiac Acadian (1968-1971)
- Chevrolet C70 (1979, 1986)
- GMC C6000 (1979-1990)
- GMC C5000 (1979-1990)
- Chevrolet C60 (1968-1990)
- Chevrolet C50 (1968-1990)
- Chevrolet Avalanche (2007-2013)
- Chevrolet Trailblazer (2006-2009)
- Hummer H2 (2003-2009)
- Pontiac Grand Prix (1978-1987, 2005-2008)
- GMC Sierra 1500 HD (2001-2003, 2005-2006)
- GMC Envoy (2005-2009)
- Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
- Pontiac GTO (2004-2006)
- GMC Yukon XL 2500 (2000-2013)
- GMC Yukon XL 1500 (2000-2014)
- GMC Yukon (1992-2023)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 2500 HD (2001-2019)
- GMC Sierra 2500 (1999-2004)
- GMC Sierra 1500 (1999-2023)
- GMC Savana 3500 (1996-2019)
- GMC Savana 2500 (1996-2019)
- GMC Savana 1500 (1996-2014)
- Chevrolet Tahoe (1995-2023)
- Chevrolet Suburban 2500 (2000-2013)
- Chevrolet Suburban 1500 (2000-2014)
- Chevrolet SSR (2003-2006)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 2500 HD (2001-2019)
- Chevrolet Silverado 2500 (1999-2004)
- Chevrolet Silverado 1500 (1999-2023)
- Cadillac CTS (2004-2007, 2009-2015)
- Buick Rainier (2004-2007)
- Pontiac Parisienne (1968-1974, 1976-1986)
- Oldsmobile Cutlass (1978-1981, 1985-1987)
- Pontiac Ventura (1971-1973, 1977)
- GMC Sprint (1971-1977)
- GMC P35/P3500 Van (1968-1974)
- GMC P25/P2500 Van (1968-1974)
- GMC K35/K3500 Pickup (1968-1974)
- GMC K25/K2500 Suburban (1968-1974)
- GMC K25/K2500 Pickup (1968-1974)
- GMC K15/K1500 Suburban (1968-1974)
- GMC K15/K1500 Pickup (1968-1974)
- GMC Jimmy (1970-1991)
- GMC G35/G3500 Van (1970-1974)
- GMC G25/G2500 Van (1968-1974)
- GMC G15/G1500 Van (1968-1974)
- GMC C35/C3500 Pickup (1968-1974)
- GMC C25/C2500 Suburban (1968-1974)
- GMC C25/C2500 Pickup (1968-1974)
- GMC C15/C1500 Suburban (1968-1974)
- GMC C15/C1500 Pickup (1968-1974)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R10 (1987)
- Chevrolet P30 (1975-1999)
- Chevrolet P20 (1975-1989)
- Chevrolet P10 (1975, 1977-1979)
- Chevrolet Nova (1969-1979)
- Chevrolet Monza (1975-1979)
- Chevrolet Monte Carlo (1970-1988, 2006-2007)
- Chevrolet Malibu (1973-1983)
- Chevrolet Laguna (1973-1976)
- Chevrolet K3500 (1988-2000)
- Chevrolet K30 (1977-1986)
- Chevrolet K2500 Suburban (1992-1999)
- Chevrolet K2500 (1988-2000)
- Chevrolet K20 Suburban (1968-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K1500 Suburban (1992-1999)
- Chevrolet K1500 (1988-1999)
- Chevrolet K10 Suburban (1968-1986)
- Chevrolet K10 (1975-1986)
- Chevrolet Impala (1968-1985, 1994-1996, 2006-2009)
- Chevrolet G30 (1975-1996)
- Chevrolet G20 (1975-1995)
- Chevrolet G10 (1975-1995)
- Chevrolet Express 3500 (1996-2019)
- Chevrolet Express 2500 (1996-2019)
- Chevrolet Express 1500 (1996-2014)
- Chevrolet El Camino (1968-1987)
- Chevrolet Corvette (1968-1982, 1984-2004, 2006-2014)
- Chevrolet Caprice (1968-1996, 2011-2017)
- Chevrolet Camaro (1967-2002, 2010-2015)
- Chevrolet C3500 (1988-2000)
- Chevrolet C30 (1975-1986)
- Chevrolet C2500 Suburban (1992-1999)
- Chevrolet C2500 (1988-2000)
- Chevrolet C20 Suburban (1968-1986)
- Chevrolet C20 (1975-1986)
- Chevrolet C1500 Suburban (1992-1999)
- Chevrolet C1500 (1988-1999)
- Chevrolet C10 Suburban (1968-1986)
- Chevrolet C10 (1975-1986)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet Blazer (1969-1974, 1987-1994)
- Chevrolet Bel Air (1968-1975, 1981)
- Chevrolet Avalanche 1500 (2002-2006)
- Cadillac Commercial Chassis (1992-1996)
- Cadillac Brougham (1990-1992)
- Cadillac Fleetwood (1993-1996)
- Cadillac Escalade (1999-2000, 2002-2016)
- Buick Skylark (1977-1979)
- Buick Commercial Chassis (1991-1996)
- Buick Roadmaster (1991-1996)
- Buick Regal (1977-1987)
- Buick LeSabre (1978, 1982)
- Buick Century (1977-1981)
- AM General Hummer (1995-1996)
- Isuzu Ascender (2003-2004)
- Checker Marathon (1965-1974, 1977-1982)
- Avanti II (1980-1985, 1987-1990)
