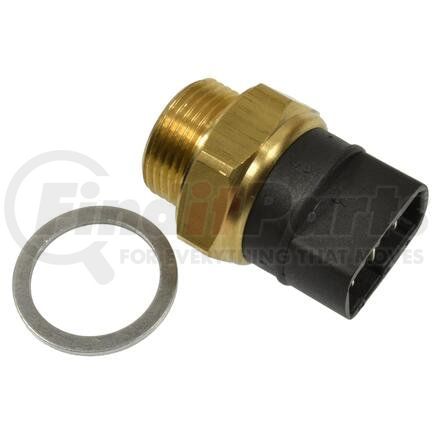

Standard Ignition TS-280 - Coolant Fan Switch
- Part Number
- TS-280
- Manufacturer
- STANDARD IGNITION
- Description
-
Coolant Fan Switch
details
$4049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Coolant Fan Switch
Features & Benefits
- Robust design and high grade materials meet the stringent demands of today's service professional
- In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
- In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
- The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
- In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
Product Attributes
| Attachment Method | Plug In |
| Bulb Included | No |
| Color/Finish | Black, Gold |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Finish | Brass |
| Hardware Included | Yes |
| Housing Material | Metal |
| Mounting Bracket(s) Included | No |
| Open at Idle | Yes |
| Overall Width (MM) | 13.208 |
| Switch Actuation Style | Toggle |
| Switch Shape | Rectangular |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Blade |
| Thread Size | 10MMX1.00 |
| Voltage | 12 |
| Width - Inches | 0.52 |
| Wire Quantity | 0 |
| Wiring Harness Included | No |
Additional Information
| Country of Origin (Primary) | IT |
| Harmonized Tariff Code (HTS) | 8536509065 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769183059 |
Part Interchanges
- Beck/Arnley 201-1612
- Echlin FS212
- Four Seasons 36519
- Kem RF105
- ACDelco 88923710
- ACDelco E1854C
- Hella 007802011
- BWD TFS561
- Duralast SW650
- VEMO V15-99-1976-1
- Audi 251959481G
- Volkswagen 251959481C
- Volkswagen 251959481D
- Volkswagen 251959481E
- Volkswagen 251959481G
- Volkswagen 251959481K
- Volkswagen 823959481K
- Airtex 1S4488
- Import Direct 17-1100
- BWD Intermotor TFS561
- MTE-THOMSON 717.87/92
- CARQUEST Premium By WELLS 53-13897
- Import Direct Ignition 17-1100
Fits Vehicles
- Volkswagen EuroVan (1992-1993)
- Audi A8 (1997-2000)
- Audi A8 Quattro (1997-2002)
- Volkswagen Vanagon (1986-1990)
