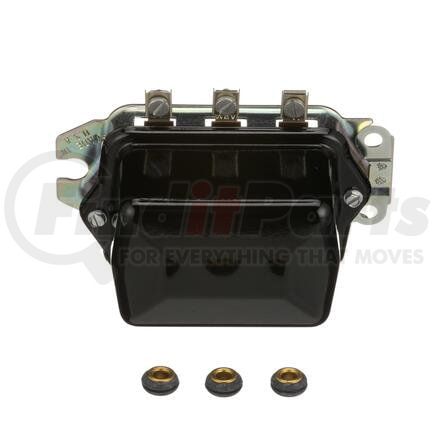

(888) 312-8812 Login SignupSTANDARD IGNITION VR-22 Voltage Regulator
Tap to view 4 more
$11199
Limited availability at this price!
In Stock
Get it by Friday, Feb 6
STANDARD IGNITION VR-22 Part Description
Manufacturer
Product Description
Voltage Regulator
Features & Benefits
- Premium components and our own manufactured circuit board ensure precise operation, reliability, and extra durability for a longer service life
- Our electronic voltage regulator PC boards are encapsulated in epoxy to deliver improved performance and resistance to failure that may be caused by vibration and corrosion of electrical connections
- We understand and expect the demand for quality, our starting and charging system products feature high grade materials for extended service life
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
STANDARD IGNITION VR-22 Specifications
Product Attributes
| Amperage Rating | 35 A |
| Bracket Type | Flat Bracket |
| Contents | Regulator |
| Mounting Location | Engine Bay |
| Notes | Negative/Positive |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Screw and Blade |
| Voltage | 12 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Flat |
| Dimensions (mm) | 145.542 x 98.044 x 66.802 |
| Dimensions - Inches | 5.73 x 3.86 x 2.63 |
| Hardware Included | Yes |
| Instructions Included | Yes |
| Mounting Bracket(s) Included | No |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8511804000 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769037673 |
STANDARD IGNITION VR-22 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 01119168, 1118939, 1118973, 1119168, D621 |
| AMC | 3150427, 3203657, J3150427, J3203657 |
| Airtex | 1V1063, 1V1436 |
| BWD | R159 |
| Beck/Arnley | 177-0049 |
| Bosch | 0190309005 |
| CARQUEST Premium By WELLS | 27-1620, 27-1678 |
| Carquest Premium Vehicle Solutions | RAG1003 |
| Caterpillar | 5L4599, 6L7250 |
| Chrysler | 3146142, 3150427, 3203657, J3150427, J3203657 |
| Duralast | VR1228, VR699 |
| Echlin | VR126 |
| General Motors | 1118338, 1118885, 1118886, 1118887, 1118939, 1118948, 1118967, 1118973, 1119002, 1119004, 1119148, 1119150, 1119162, 1119168, 1119190, 1119242, 1119253, 1119261, 1119264, 1119266, 1119277, 1119299, 1119305 |
| Jeep | 3150427, 3203657, J3150427, J3203657 |
| Kem | KVR562 |
| N/A | 1119190 |
| Renault | 3150427, 3203657, J3150427, J3203657 |
STANDARD IGNITION VR-22 Fits Vehicles
- Studebaker Commander (1964)
- Studebaker 8E13 (1964)
- Studebaker 8E12 (1964)
- GMC I1000 (1964)
- Studebaker 7E7 (1962)
- GMC S370 (1958-1959)
- Hudson Hornet (1957)
- Pontiac Super Chief (1957)
- Oldsmobile Super 88 (1957)
- Oldsmobile Starfire (1957)
- Oldsmobile Dynamic 88 (1959)
- Studebaker 8E10 (1964)
- Studebaker 7E10 (1962)
- Chevrolet Corvair Truck (1961)
- GMC 3000 (1960-1962, 1964)
- GMC PM250 (1958-1959)
- Chevrolet 3E (1959)
- American Motors Rambler (1958-1960)
- Pontiac Beaumont (1964-1968)
- Pontiac Tempest (1961-1962, 1964-1968)
- Studebaker Avanti (1964)
- Studebaker 8E7D (1964)
- Studebaker 8E7 (1964)
- Studebaker 8E5 (1964)
- Studebaker 8E11 (1964)
- GMC 3500 (1960-1962, 1964)
- Studebaker 7E12D (1962)
- Studebaker 7E12 (1962)
- Studebaker 8E6 (1964)
- Studebaker 8E15 (1964)
- Studebaker 8E12D (1964)
- Studebaker 8E14 (1964)
- GMC B3500 (1964)
- Buick Estate Wagon (1960-1962)
- Studebaker Taxi (1962, 1964)
- Studebaker Hawk (1962, 1964)
- Cadillac Series 75 Fleetwood (1957, 1959-1962)
- Studebaker Cruiser (1962, 1964)
- Studebaker 7E5 (1962)
- Studebaker 7E13 (1962)
- Studebaker 7E13D (1962)
- Studebaker 7E11 (1962)
- Pontiac Strato-Chief (1959, 1961-1968)
- Pontiac Laurentian (1959, 1961-1968)
- GMC Suburban (1960-1962, 1964)
- GMC M300 (1958-1959)
- Buick Wildcat (1962)
- GMC 370 (1958-1959)
- GMC 350-8 (1958-1959)
- GMC 150 (1958-1959)
- Chevrolet 3G (1959)
- GMC Truck (1958-1960)
- Cadillac Series 62 (1957, 1959-1962)
- GMC S300 (1958-1959)
- GMC PM150 (1958-1959)
- GMC FM340 (1958-1959)
- Pontiac Parisienne (1959, 1961-1968)
- GMC F370 (1958-1959)
- Cadillac Commercial Chassis (1957, 1959-1962)
- GMC 300 (1958-1959)
- Chevrolet 3F (1959)
- Chevrolet 3D (1959)
- Chevrolet 3B (1959)
- Chevrolet 3C (1959)
- American Motors American (1958-1960)
- Buick Special (1956-1958, 1961-1962)
- GMC FM350 (1958-1959)
- GMC F350 (1958-1959)
- GMC 250 (1958-1959)
- GMC 100 (1958-1959)
- Chevrolet Truck (1957-1960)
- Buick Super (1956-1958)
- Chevrolet C30 Panel (1960-1962)
- Chevrolet C10 Panel (1960-1962)
- GMC PB2500 Series (1964)
- Pontiac Acadian (1962-1968)
- GMC PM152 (1957-1959)
- Studebaker Gran (1962, 1964)
- GMC PB1500 Series (1964)
- GMC PV1000 (1960)
- GMC PM252 (1958)
- GMC PM251 (1957-1959)
- GMC PM253 (1958)
- GMC PM153 (1957, 1959)
- GMC PM151 (1957-1959)
- Studebaker Champ (1962, 1964)
- Studebaker Lark (1962, 1964)
- Studebaker Daytona (1962, 1964)
- Studebaker Challenger (1964)
- Pontiac Star Chief (1956-1957, 1960)
- Pontiac LeMans (1965-1968)
- Pontiac GTO (1967-1968)
- Pontiac Grand Prix (1968)
- Pontiac Chieftain (1956-1957)
- Pontiac Bonneville (1957, 1960)
- Pontiac Ventura (1960)
- Pontiac Firebird (1967-1968)
- Pontiac Catalina (1956-1957, 1960, 1967-1968)
- Oldsmobile 98 (1959)
- Oldsmobile Fiesta (1957, 1959)
- Oldsmobile 88 (1957)
- GMC V3000 Forward Control (1960-1962)
- GMC PB1000 Series (1961-1962, 1964)
- GMC G1000 Series (1964)
- GMC 1500 Series (1960-1962, 1964)
- GMC 1000 Series (1960-1962, 1964)
- GMC 2500 Series (1960-1962, 1964)
- Chevrolet P30 Series (1960-1962)
- Chevrolet P10 Series (1960-1962)
- Chevrolet Two-Ten Series (1957)
- Chevrolet Suburban (1960-1962)
- Chevrolet One-Fifty Series (1957)
- Chevrolet Chevy II (1962-1963)
- Chevrolet P20 Series (1960-1962)
- Chevrolet C30 Pickup (1960-1962)
- Chevrolet El Camino (1959-1960)
- Chevrolet Corvette (1955-1957, 1959, 1961)
- Chevrolet K20 Pickup (1960-1962)
- Chevrolet K10 Pickup (1960-1962)
- Chevrolet Impala (1958-1959, 1961-1962)
- Chevrolet Del Ray (1958)
- Chevrolet C20 Pickup (1960-1962)
- Chevrolet Corvair (1961, 1964)
- Chevrolet C10 Pickup (1960-1962)
- Buick Century (1956-1958)
- Cadillac Eldorado (1957, 1959-1962)
- Buick Invicta (1960-1962)
- Buick Electra (1959-1962)
- Chevrolet Biscayne (1958-1959, 1961-1962)
- Chevrolet Bel Air (1955-1957, 1959, 1962)
- Cadillac Series 60 Fleetwood (1957, 1959-1962)
- American Motors Ambassador (1958-1960)
- Cadillac DeVille (1957, 1959-1962)
- Buick Skylark (1961-1962)
- Buick Roadmaster (1956-1958)
- Buick Limited (1958)
- Buick LeSabre (1960-1962)
