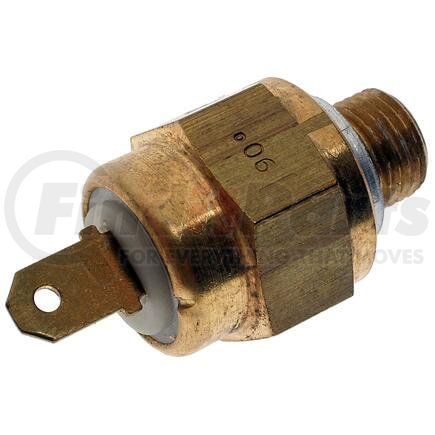

Name: Standard Ignition TS-305 Coolant Fan Switch
SKU: ts305
Price: 35.49 USD
Availability: InStock

STANDARD IGNITION part description

Product Description

Coolant Fan Switch

Features & Benefits

Robust design and high grade materials meet the stringent demands of today's service professional
In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product

Product Attributes

Attachment Method	Plug In
Bulb Included	No
Color/Finish	Gold
Connector Gender	Male
Connector Quantity	1
Connector Shape	Round
Finish	Brass
Hardware Included	No
Housing Material	Metal
Mounting Bracket(s) Included	No
Open at Idle	Yes
Overall Width (MM)	15.24
Switch Actuation Style	Toggle
Switch Shape	Round
Terminal Gender	Male
Terminal Quantity	1
Terminal Type	Blade
Thread Size	10MMX1.00
Voltage	12
Width - Inches	0.6
Wire Quantity	0
Wiring Harness Included	No

Additional Information

Country of Origin (Primary)	DE
Harmonized Tariff Code (HTS)	8536509065
Warranty Distance	36000
Warranty Distance UOM	MI
Warranty Time	36
Warranty Time UOM	MO
UPC	00091769142896

Part Interchanges

Fits Vehicles

Volkswagen Corrado (1990-1995)
