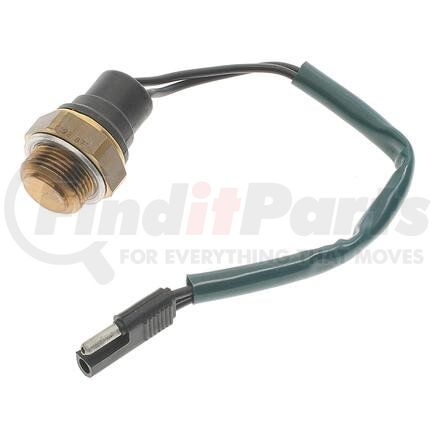

Standard Ignition TS-100 - Coolant Fan Switch
- Part Number
- TS-100
- Manufacturer
- STANDARD IGNITION
- Description
-
Coolant Fan Switch
details
$4099
MSRP: $43.77
Save: $2.78
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Coolant Fan Switch
Features & Benefits
- Robust design and high grade materials meet the stringent demands of today's service professional
- In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
- In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
- The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
- In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
- As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product
Product Attributes
| Attachment Method | Screw-On |
| Bulb Included | No |
| Color/Finish | Black, Gold |
| Connector Gender | Female; Male |
| Connector Quantity | 2 |
| Connector Shape | Round |
| Hardware Included | No |
| Harness Length - inches | 7.75 |
| Harness Length - mm | 196.85 |
| Housing Material | Plastic, Metal |
| Mounting Bracket(s) Included | No |
| Open at Idle | Yes |
| Overall Width (MM) | 13.97 |
| Switch Actuation Style | Toggle |
| Switch Shape | Round |
| Terminal Gender | Male; Female |
| Terminal Quantity | 2 |
| Terminal Type | Bullet |
| Voltage | 12 |
| Width - Inches | 0.55 |
| Wire Quantity | 2 |
| Wiring Harness Included | Yes |
Additional Information
| Country of Origin (Primary) | IT |
| Harmonized Tariff Code (HTS) | 8536509065 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00091769031152 |
Part Interchanges
Fits Vehicles
- Toyota Corolla (1983)
- Yugo GVX (1988-1989)
- Yugo GVL (1988-1989)
- Yugo GV (1987-1988)
- Fiat X-1/9 (1979-1983)
- Fiat Strada (1979-1982)
- Fiat Brava (1978-1981)
- Fiat 124 (1979-1983)
