Name: Standard Ignition TS-339 Intermotor Temperature Sender - With Gauge
SKU: ts339
Price: 31.99 USD
Availability: InStock

STANDARD IGNITION part description

Product Description

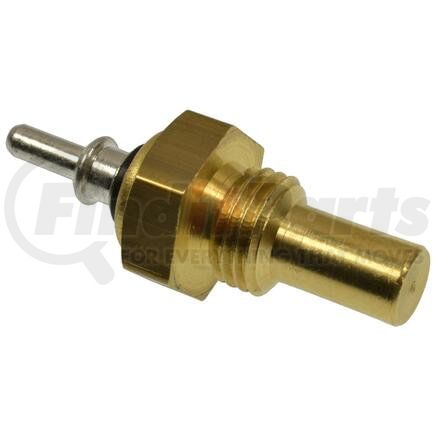

Temperature Sender - With Gauge

Features & Benefits

Robust design and high grade materials meet the stringent demands of today's service professional
In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller
In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature
The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance
In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point
As a global manufacturer of original equipment ignition products, we maintain complete quality control throughout the manufacturing process from componentry to finished product

Product Attributes

Attachment Method	Bolt On
Color/Finish	Gold
Connector Gender	Male
Connector Quantity	1
Connector Shape	Round
Connector Type	Bolt On
Finish	Brass
Terminal Gender	Male
Terminal Quantity	1
Terminal Type	Bullet

Additional Information

Country of Origin (Primary)	BR
Harmonized Tariff Code (HTS)	9025198085
Warranty Distance	36000
Warranty Distance UOM	MI
Warranty Time	36
Warranty Time UOM	MO
UPC	00091769208486

Part Interchanges

Fits Vehicles

Mercedes-Benz 600SL (1993)
Mercedes-Benz 560SEL (1991)
Mercedes-Benz 500E (1992-1993)
Mercedes-Benz 400SE (1992)
Mercedes-Benz 400SEL (1993)
Mercedes-Benz 400E (1992-1993)
Mercedes-Benz 380SEC (1982-1983)
Mercedes-Benz 350SDL (1990-1991)
Mercedes-Benz 300SDL (1986-1987)
Mercedes-Benz E420 (1994-1995)
Mercedes-Benz C220 (1994-1996)
Mercedes-Benz 600SEL (1993)
Mercedes-Benz 500SEC (1984-1985, 1993)
Mercedes-Benz 450SEL (1977-1979)
Mercedes-Benz 300SE (1988-1993)
Mercedes-Benz 280E (1977-1981)
Mercedes-Benz SL600 (1995-1999)
Mercedes-Benz SL320 (1994-1997)
Mercedes-Benz SL500 (1994-1999)
Mercedes-Benz S600 (1995-1999)
Mercedes-Benz S500 (1994-1999)
Mercedes-Benz S420 (1994-1999)
Mercedes-Benz S320 (1994-1999)
Mercedes-Benz E320 (1994-1995)
Mercedes-Benz CL500 (1998-1999)
Mercedes-Benz 600SEC (1993)
Mercedes-Benz 560SEC (1986-1991)
Mercedes-Benz 500SL (1991-1993)
Mercedes-Benz 500SEL (1984-1985, 1992-1993)
Mercedes-Benz 420SEL (1990-1991)
Mercedes-Benz 380SL (1981-1985)
Mercedes-Benz 380SLC (1981)
Mercedes-Benz 380SEL (1981-1983)
Mercedes-Benz 380SE (1984-1985)
Mercedes-Benz 350SD (1991)
Mercedes-Benz 300TE (1988-1993)
Mercedes-Benz 300SL (1990-1993)
Mercedes-Benz 300SEL (1988-1991)
Mercedes-Benz 300E (1986-1993)
Mercedes-Benz 300D (1987, 1990-1993)
Mercedes-Benz 300CE (1988-1993)
Mercedes-Benz 280SE (1977-1980)
Mercedes-Benz 280CE (1978-1981)
Mercedes-Benz 260E (1987-1989)
Mercedes-Benz 190E (1984-1993)
Mercedes-Benz 190D (1984-1989)
