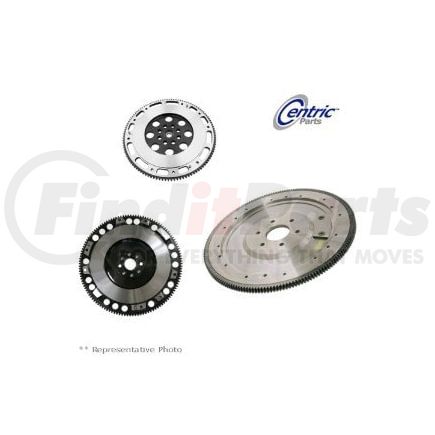

Name: LuK LFW162 FLYWHEEL
SKU: lfw162
Price: 61.99 USD
Availability: InStock

LUK part description

Product Details

Item Weight: 16 pounds
Shipping Weight: 16 pounds (View shipping rates and policies)
ASIN: B000QQD7FS

Product Description

LuK Rigid Flywheel

Application Summary

Chevrolet Cavalier 1982-2002 (L4, 1.8L; L4, 2.0L; L4, 2.2L; V6, 2.8L; V6, 3.1L), Chevrolet Corsica 1987-1993 (L4, 2.0L; V6, 2.8L; V6, 3.1L), Chevrolet S10 1994-2003 (L4, 2.2L), GMC Sonoma 1994-2003 (L4, 2.2L), Pontiac Sunfire 1995-2002 (L4, 2.2L)

Product Attributes

Flange Thickness	0.36 inch
Flange Thickness	9.14 MM
Flywheel friction surface outer diameter	10.039 inch
Flywheel friction surface outer diameter	255 mm
Bolt Hole Pattern	2
Has Dowel Pins	without Dowel Pins
Flywheel Friction Surface Inner diameter	6.181 inch
Flywheel Friction Surface Inner diameter	157 mm
Ring Gear Major Dia.	11.929 inch
Ring Gear Major Dia.	303 mm
Number of teeth, starter ring gear	142
Crank To Friction Surface	0.803 inch
Crank To Friction Surface	20.4 mm
Ring Gear Thickness	0.451 inch
Ring Gear Thickness	11.45 mm
Flywheel Thickness [mm]	0.614 inch
Flywheel Thickness [mm]	15.6 mm
Crank Hole Dia.	0.423 inch
Crank Hole Dia.	10.75 mm
Overall Casting O.D.	11.378 inch
Overall Casting O.D.	289 mm
I.D. for Pilot	1.26 inch
I.D. for Pilot	32 mm
Bolt hole PCD clutch pres.plte	10.524 inch
Bolt hole PCD clutch pres.plte	267.3 mm
Ring Gear Chamfer Position @ 6:00 O´clock	Not available
Number of mounting bores	2
Ring Gear Mounting O.D.	11.142 inch
Ring Gear Mounting O.D.	283 mm
Ring Gear Chamfer Side	Not available
Bolt hole PCD crankshaft	2.323 inch
Bolt hole PCD crankshaft	59 mm

Additional Information

Remanufactured Part	N
Warranty Special	12 months or 12,000 miles - whichever comes first
Country of Origin (Primary)	CN
Harmonized Tariff Code (HTS)	8483508080
Stock Status	S
UPC	670774100482

Part Interchanges

Fits Vehicles

Pontiac Tempest (1990-1991)
Pontiac Sunfire (1995-2002)
Pontiac Sunbird (1991-1994)
Pontiac J2000 Sunbird (1984)
Pontiac J2000 (1983)
Pontiac Grand Prix (1988-1992)
Pontiac 6000 (1987-1988)
Oldsmobile Firenza (1983-1988)
Oldsmobile Cutlass Supreme (1988-1990)
GMC Sonoma (1994-2003)
Chevrolet S10 (1994-2003)
Chevrolet Corsica (1987-1993)
Chevrolet Celebrity (1987-1988)
Chevrolet Cavalier (1982-2002)
Chevrolet Beretta (1987-1996)
Cadillac Cimarron (1983-1988)
Buick Skyhawk (1983-1989)
Isuzu Rodeo (1991-1992)
Isuzu Hombre (1996-2000)

LuK® is a worldwide leader in manufacturing clutches, power steering pumps, dual-mass flywheels, and self-adjusting clutch and engine components for various vehicle applications. It was founded by brothers George and Wilhelm Schaeffler in 1965. Initially, it was established as a manufacturer of diaphragm spring clutches with a release system. But when it was acquired by Schaeffler Group, a globally known supplier of chassis, engine, and transmission components for automotive and industrial applications, the company has grown immensely. Currently, LuK has research and development centers, offices, and manufacturing plants around the world. It remains steadfast to its commitment to providing only the highest quality clutches and other transmission, steering, suspension, and engine components.
