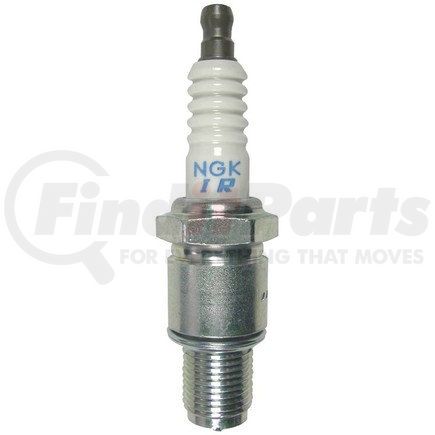

NGK Spark Plugs 6701 - NGK Laser Iridium Spark Plug
- Part Number
- 6701
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Iridium Spark Plug
details
$9196
Package Price for 4 Units
@ $22.99 per unit
In stock
limited availability at this price!
. Learn more
NGK SPARK PLUGS part description
Product Description
NGK Laser Iridium Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- ROTARY DESIGN: Recessed center electrode and low angle platinum ground electrode designed specifically for rotary engines
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Rotary engines
Product Attributes
| Stock Number | 6701 |
| Part Number | RE9B-T |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Pin Type |
| Ground Configuration | Slant |
| Ground Electrode Core Material | Platinum |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .047 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16 IN |
| Insulator Height | 60.00 MM |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 14.00 MM |
| Short Style Spark Plug | No |
| Service Number | RE9B-T |
| Washer Included | Yes |
| Grade Type | Performance |
| Hex Size | 13/16" |
| Insulator Height | 2.37 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| 9459 | No |
| 9506 | 0.00 IN |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9805 | Non-Projected |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295167014 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Mazda RX-8 (2004-2011)
