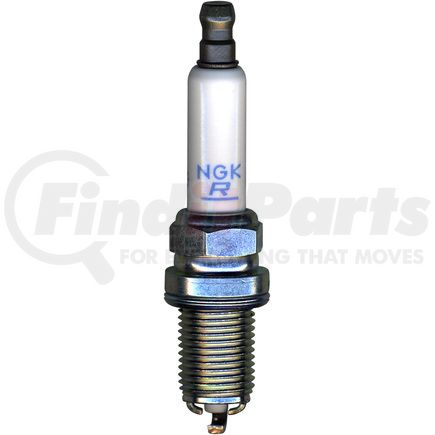

NGK Spark Plugs 5547 - NGK Laser Platinum Spark Plug
- Part Number
- 5547
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Platinum Spark Plug
details
$1549
MSRP: $23.37
Save: $7.88
In stock
limited availability at this price!
. Learn more
NGK SPARK PLUGS part description
Product Description
NGK Laser Platinum Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction platinum alloy center electrode provides consistent performance
- PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- OE SPECIFIED MULTI-GROUND ELECTRODE: Provides excellent cold start performance and anti-fouling properties
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
- RECOMMENDED USAGE: Best for vehicles with OE platinum alloy multi-ground electrode plugs
Product Attributes
| Stock Number | 5547 |
| Part Number | PFR6W-TG |
| Resistance | 1000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | Multi-Ground Electrode |
| Ground Electrode Core Material | Copper |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .036 IN |
| Ground Electrode Quantity | 3 |
| Hex Size | 5/8 IN |
| Insulator Height | 50.50 MM |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 14.00 MM |
| Short Style Spark Plug | No |
| Service Number | PFR6W-TG |
| Washer Included | Yes |
| Grade Type | Performance |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| 9459 | No |
| 9506 | 0.14 IN |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9805 | Mid Projection |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295155479 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Audi S5 (2008-2012)
- Audi A8 Quattro (2007-2012)
- Audi A6 Quattro (2007-2011)
- Audi S8 (2007-2009)
- Audi S6 (2007-2011)
- Volkswagen Touareg (2007-2009)
- Audi Q7 (2007-2010)
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
