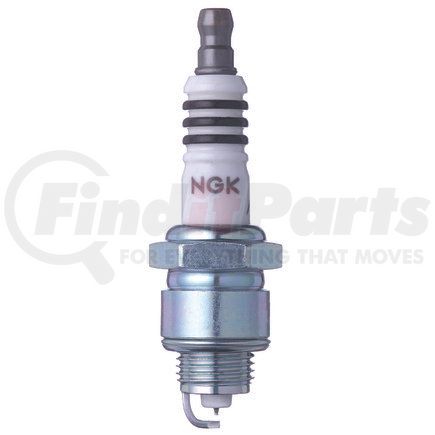

Name: NGK Spark Plugs 7293 NGK Iridium IX Spark Plug
SKU: 7293
Price: 7.99 USD
Availability: InStock

NGK SPARK PLUGS part description

XR45IX S-PLUGS

Product Description

NGK Iridium IX Spark Plug

Features & Benefits

SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs

Product Attributes

Part Number	XR45IX
Stock Number	7293
Resistance	5000.0 82
Ground Electrode Tip Design	Taper Cut
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Non-Removable Nut
Center Electrode Core Material	Copper
Center Electrode Tip Material	Iridium
Pre-Gap Size	.060 IN
Ground Electrode Quantity	1
Hex Size	13/16 IN
Insulator Height	55.00 MM
Manufacturer Heat Range	4
Seat Type	Flat
Reach	0.375 IN
Thread Diameter	14.00 MM
Short Style Spark Plug	No
Service Number	XR45IX
Washer Included	Yes
Grade Type	Performance
Hex Size	13/16"
Insulator Height	2.24 IN
Thread Diameter	0.551 IN
Insulator Material	Ceramic
Resistor Type	Yes
6648	0.0 IN
Ground Electrode Tip Material	Nickel
9459	No
9506	0.16 IN
9608	Fine Wire
9745	Crush
9805	Mid Projection

Additional Information

Warranty Time UOM	MO
Warranty Time	2
Country of Origin (Primary)	JP
Harmonized Tariff Code (HTS)	8511100000
UPC	00087295172933
VMRS Code	033003005
UNSPSC	26101732

Part Interchanges

Fits Vehicles

Pontiac Grand Safari (1977-1978)
Pontiac Parisienne (1981)
Pontiac Laurentian (1981)
Pontiac Ventura (1975-1977)
Pontiac Sunbird (1976)
Pontiac Phoenix (1977)
Pontiac LeMans (1976-1977)
Pontiac Grand Prix (1977)
Pontiac Grand LeMans (1976-1977)
Pontiac Firebird (1977-1979)
Pontiac Catalina (1977-1981)
Pontiac Bonneville (1977-1981)
Oldsmobile Vista Cruiser (1975)
Oldsmobile Toronado (1973-1984)
Oldsmobile Starfire (1975-1976)
Oldsmobile Omega (1975-1977)
Oldsmobile Delta 88 (1973-1984)
Oldsmobile Cutlass Supreme (1975-1984)
Oldsmobile Cutlass Cruiser (1980-1983)
Oldsmobile Cutlass Calais (1978-1984)
Oldsmobile Cutlass Tiara (1976)
Oldsmobile Cutlass Salon (1975-1980, 1985)
Oldsmobile Cutlass (1975-1981)
Oldsmobile Custom Cruiser (1973-1984)
Oldsmobile 98 (1973-1984)
Cadillac Seville (1976-1980)
Cadillac Eldorado (1979-1980)
Buick Skylark (1975-1977)
Buick Skyhawk (1975-1976)
Buick Riviera (1976-1984)
Buick Regal (1975-1977)
Buick LeSabre (1976-1984)
Buick Estate Wagon (1976-1983)
Buick Electra (1976-1984)
Buick Century (1975-1977)
Buick Apollo (1975)
