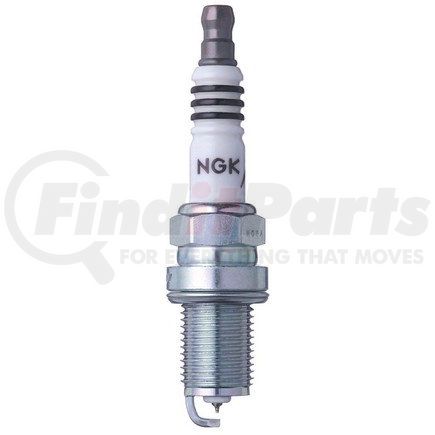

NGK Spark Plugs 5690 - NGK Iridium IX Spark Plug
- Part Number
- 5690
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Iridium IX Spark Plug
details
$799
MSRP: $13.49
Save: $5.50
In stock
limited availability at this price!
NGK SPARK PLUGS part description
Product Description
NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
Product Attributes
Part Number | BCPR7EIX |
Stock Number | 5690 |
Resistance | 5000.0 82 |
Ground Electrode Tip Design | Taper Cut |
Ground Configuration | J-Gap |
Ground Electrode Core Material | Nickel |
Electrical Terminal Type | Non-Removable Nut |
Center Electrode Core Material | Copper |
Center Electrode Tip Material | Iridium |
Pre-Gap Size | .032 IN |
Ground Electrode Quantity | 1 |
Hex Size | 5/8 IN |
Insulator Height | 53.00 MM |
Manufacturer Heat Range | 7 |
Seat Type | Flat |
Reach | 0.750 IN |
Thread Diameter | 14.00 MM |
Short Style Spark Plug | No |
Service Number | BCPR7EIX |
Washer Included | Yes |
Grade Type | Performance |
Hex Size | 5/8" (16mm) |
Insulator Height | 2.09 IN |
Thread Diameter | 0.551 IN |
Insulator Material | Ceramic |
Resistor Type | Yes |
6648 | 0.0 IN |
Ground Electrode Tip Material | Nickel |
9459 | No |
9506 | 0.14 IN |
9608 | Fine Wire |
9745 | Crush |
9805 | Mid Projection |
Additional Information
Harmonized Tariff Code (HTS) | 8511100000 |
Warranty Time UOM | MO |
Warranty Time | 2 |
Country of Origin (Primary) | JP |
UPC | 00087295156902 |
VMRS Code | 033003005 |
UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Volvo 850 (1994)
- Saab 9000 (1986-1990)
- Saab 900 (1985-1988, 1990-1994)
