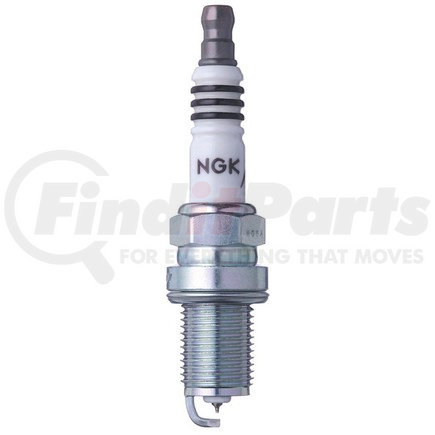

NGK Spark Plugs 3306 - NGK Iridium IX Spark Plug
- Part Number
- 3306
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Iridium IX Spark Plug
details
$899
MSRP: $13.49
Save: $4.50
In stock
limited availability at this price!
NGK SPARK PLUGS part description
Product Description
NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
Product Attributes
Part Number | BCPR5EIX-11 |
Stock Number | 3306 |
Resistance | 5000.0 82 |
Ground Electrode Tip Design | Taper Cut |
Ground Configuration | J-Gap |
Ground Electrode Core Material | Nickel |
Electrical Terminal Type | Non-Removable Nut |
Center Electrode Core Material | Copper |
Center Electrode Tip Material | Iridium |
Pre-Gap Size | .044 IN |
Ground Electrode Quantity | 1 |
Hex Size | 5/8 IN |
Insulator Height | 53.00 MM |
Manufacturer Heat Range | 5 |
Seat Type | Flat |
Reach | 0.750 IN |
Thread Diameter | 14.00 MM |
Short Style Spark Plug | No |
Service Number | BCPR5EIX-11 |
Washer Included | Yes |
Grade Type | Performance |
Hex Size | 5/8" (16mm) |
Insulator Height | 2.09 IN |
Thread Diameter | 0.551 IN |
Insulator Material | Ceramic |
Resistor Type | Yes |
6648 | 0.0 IN |
Ground Electrode Tip Material | Nickel |
9459 | No |
9506 | 0.14 IN |
9608 | Fine Wire |
9745 | Crush |
9805 | Mid Projection |
Additional Information
Warranty Time UOM | MO |
Warranty Time | 2 |
Country of Origin (Primary) | JP |
Harmonized Tariff Code (HTS) | 8511100000 |
UPC | 00087295133064 |
VMRS Code | 033003005 |
UNSPSC | 26101732 |
Part Interchanges
- DENSO Auto Parts 3152
- DENSO Auto Parts 3154
- DENSO Auto Parts 3156
- DENSO Auto Parts 3266
- DENSO Auto Parts 4706
- DENSO Auto Parts 5301
- DENSO Auto Parts 5601
- DENSO Auto Parts IQ16
- DENSO Auto Parts IQ16TT
- DENSO Auto Parts Q16-ZU11
- DENSO Auto Parts Q16PR-TP11
- DENSO Auto Parts Q16PR-ZU11
- DENSO Auto Parts Q16R-ZU11
- DENSO Auto Parts VQ16
- NGK 3306
- Daihatsu 999-06910-X9-004
- Honda 98079-5514F
- Mitsubishi MZ602063
- Mazda 1UNC-18-110
- Mazda JE26-18-110
- Nissan BY481-BCPR5
Fits Vehicles
- Nissan Multi (1986-1988)
- Toyota Supra (1986-1992)
- Toyota MR2 (1985-1989)
- Toyota Cressida (1989-1992)
- Toyota Corolla (1985-1989)
- Toyota Celica (1986-1989)
- Toyota Camry (1987-1991)
- Nissan Stanza (1984-1989)
- Nissan Sentra (1989-1990)
- Nissan Pulsar NX (1989-1990)
- Nissan Pathfinder (1987-1989)
- Nissan D21 (1986-1989)
- Nissan 200SX (1984-1988)
- Mercedes-Benz SLK230 (1998-2000)
- Honda Prelude (1988-1990)
- Honda CRX (1988-1991)
- Acura Integra (1990-1991)
- Mercury Lynx (1981)
- Mercury LN7 (1982)
- Ford Escort (1981)
- Ford EXP (1982)
- Chevrolet Nova (1988)
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
