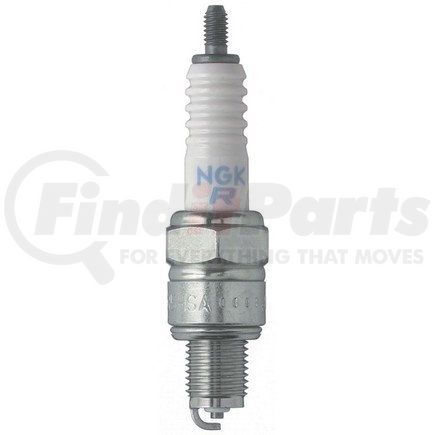

Name: NGK Spark Plugs 2983 NGK Standard Spark Plug
SKU: 2983
Price: 2.93 USD
Availability: InStock

NGK SPARK PLUGS part description

CR6HSA S-PLUGS

Product Description

NGK Standard Spark Plug

Features & Benefits

ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal

Product Attributes

Part Number	CR6HSA
Stock Number	2983
Resistance	5000.0 82
Ground Electrode Tip Design	Standard
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Stud
Center Electrode Core Material	Copper
Center Electrode Tip Material	Nickel
Pre-Gap Size	.028 IN
Ground Electrode Quantity	1
Hex Size	5/8 IN
Insulator Height	50.00 MM
Manufacturer Heat Range	6
Seat Type	Flat
Reach	0.500 IN
Thread Diameter	10.00 MM
Short Style Spark Plug	No
Service Number	CR6HSA
Washer Included	Yes
Grade Type	Regular
Hex Size	5/8" (16mm)
Insulator Height	1.88 IN
Thread Diameter	0.394 IN
Insulator Material	Ceramic
Resistor Type	Yes
6648	0.0 IN
Ground Electrode Tip Material	Nickel
9459	No
9506	0.06 IN
9608	Standard
9745	Crush
9805	Non-Projected

Additional Information

Harmonized Tariff Code (HTS)	8511100000
Warranty Time UOM	MO
Warranty Time	2
Country of Origin (Primary)	TH
UPC	00087295129838
VMRS Code	033003005
UNSPSC	26101732

Part Interchanges

Fits Vehicles

Yamaha YFM90 Grizzly 90 (2019)
Kawasaki BR125 Z125 PRO (2017-2019)
Yamaha YFZ50 (2017-2019)
Polaris Sportsman 110 EFI (2016-2020)
Polaris Outlaw 110 EFI (2016-2020)
Yamaha YFM90 Raptor (2016-2019)
Polaris RZR 170 EFI (2015-2020)
Honda TRX90X (2015-2020)
Polaris RZR 170 (2014)
KYMCO Agility 50 (2006)
Honda CRF80F (2012-2013)
Honda CRF100F (2012-2013)
Yamaha YFM125 Raptor (2011-2013)
Kawasaki KLX110L (2010-2019)
Polaris Ranger RZR 170 (2009-2013)
Yamaha TTR110E (2008-2009, 2011-2020)
Polaris Outlaw 50 (2008-2019)
Suzuki LT-Z90 QuadSport (2007-2009, 2014-2017)
Suzuki LT-Z50 QuadSport (2007-2009, 2017)
Polaris Sportsman 90 (2007-2014)
Polaris Predator 50 (2007)
Polaris Outlaw 90 (2007-2014)
Polaris Sawtooth (2006-2007)
Polaris Phoenix 200 (2005-2020)
Arctic Cat 90 2x4 4-Stroke (2005)
Honda CRF70F (2004-2009, 2011-2012)
Honda CRF50F (2004-2009, 2011, 2017-2020)
Yamaha TTR90E (2003-2007)
Suzuki DR-Z110 (2003-2005)
Kawasaki KLX110 (2002-2019)
Yamaha XV250 Virago (2000-2007)
Yamaha TTR90 (2000-2003)
Honda XR50R (2000-2003)
Honda XR100R (2000-2003)
Honda CMX250C Rebel (2000-2009, 2012-2014)
Honda XR70R (1997-2003)
Honda CT70 (1991-1994)
Honda CB250 Nighthawk (1991-2008)
Honda ZB50 (1988)
Honda Z50R (1982-1989, 1991-1999)
Aston Martin DB3 (1951-1952)
Aston Martin DB2-4 (1953-1955)
Aston Martin DB2 (1950-1953)

Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
