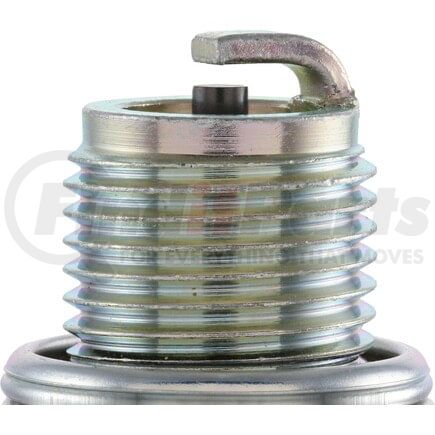

Name: NGK Spark Plugs 3922 NGK Standard Spark Plug
SKU: 3922
Price: 2.93 USD
Availability: InStock

NGK SPARK PLUGS part description

BR6HS S-PLUGS

Product Description

NGK Standard Spark Plug

Features & Benefits

ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal

Product Attributes

Part Number	BR6HS
Stock Number	3922
Resistance	5000.0 82
Ground Electrode Tip Design	Standard
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Removable Nut
Center Electrode Core Material	Copper
Center Electrode Tip Material	Nickel
Pre-Gap Size	.028 IN
Ground Electrode Quantity	1
Hex Size	13/16 IN
Insulator Height	55.00 MM
Manufacturer Heat Range	6
Seat Type	Flat
Reach	0.500 IN
Thread Diameter	14.00 MM
Short Style Spark Plug	No
Service Number	BR6HS
Washer Included	Yes
Grade Type	Regular
Hex Size	13/16"
Insulator Height	2.14 IN
Thread Diameter	0.551 IN
Insulator Material	Ceramic
Resistor Type	Yes
6648	0.0 IN
Ground Electrode Tip Material	Nickel
9459	No
9506	0.04 IN
9608	Standard
9745	Crush
9805	Non-Projected

Additional Information

Harmonized Tariff Code (HTS)	8511100000
Warranty Time UOM	MO
Warranty Time	2
Country of Origin (Primary)	JP
UPC	00087295139226
VMRS Code	033003005
UNSPSC	26101732

Part Interchanges

Fits Vehicles

Cub Cadet Challenger 400 4x4 (2018)
Cub Cadet Challenger 400 (2016-2018)
Cub Cadet Challenger 400 LX (2016-2018)
Yamaha LB80 Chappy (1977)
Yamaha LB50 Chappy (1978-1982)
Yamaha LB80 II Chappy (1976-1978)
Kubota RTV400Ci (2012-2018)
KTM 50 SXR Pro Sr (1997)
KTM 50 SXR Pro Jr (1997)
Yamaha LB50 (1981-1982)
Arctic Cat Kitty Cat (1977-1981, 1985-1999)
Yamaha TY80 (1974-1975)
Honda MR50 (1974-1975)
Volkswagen Transporter (1954-1966)
Volkswagen Thing (1973-1974)
Volkswagen Super Beetle (1971-1980)
Volkswagen Squareback (1966-1973)
Volkswagen Karmann Ghia (1956-1974)
Volkswagen Fastback (1966-1973)
Volkswagen Campmobile (1968-1971)
Chevrolet Corvair (1962-1965)
Aston Martin DBD (1958-1959)
Aston Martin DB3 (1953-1956)
Aston Martin DB2-4 (1953-1957)
Aston Martin DB (1957-1959)
Volkswagen Beetle (1954-1979)

Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
