NGK SPARK PLUGS part description

XR5 S-PLUGS

Product Description

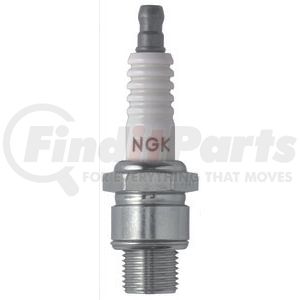

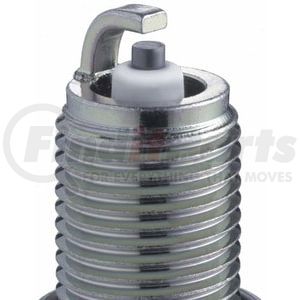

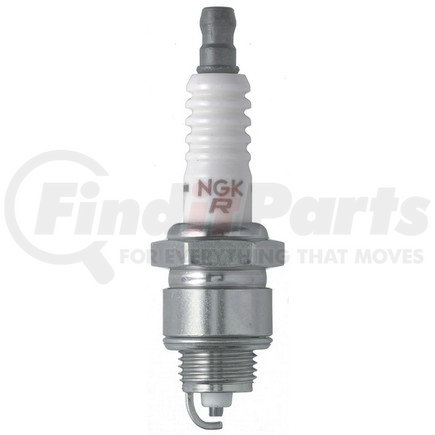

NGK V-Power Spark Plug

Features & Benefits

  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance
  • RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
  • NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal

Product Attributes

Part Number XR5
Stock Number 3332
Resistance 5000.0 82
Ground Electrode Tip Design Standard
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Electrical Terminal Type Non-Removable Nut
Center Electrode Core Material Copper
Center Electrode Tip Material Nickel
Pre-Gap Size .040 IN
Ground Electrode Quantity 1
Hex Size 13/16 IN
Insulator Height 55.00 MM
Manufacturer Heat Range 5
Seat Type Flat
Reach 0.375 IN
Thread Diameter 14.00 MM
Short Style Spark Plug No
Service Number XR5
Washer Included Yes
Grade Type Regular
Hex Size 13/16"
Insulator Height 2.24 IN
Thread Diameter 0.551 IN
Insulator Material Ceramic
Resistor Type Yes
6648 0.0 IN
Ground Electrode Tip Material Nickel
9459 No
9506 0.16 IN
9608 Standard
9745 Crush
9805 Mid Projection

Additional Information

Warranty Time UOM MO
Warranty Time 2
Country of Origin (Primary) JP
Harmonized Tariff Code (HTS) 8511100000
UPC 00087295133323
VMRS Code 033003005
UNSPSC 26101732

Part Interchanges

Fits Vehicles

  • International Scout (1961-1971)
  • International MS1210 (1972-1974)
  • International MHC1310 (1974)
  • International MA1200 (1968-1971)
  • International M800 Post Office (1969-1972)
  • International M800 Navy (1969)
  • International M800 (1968-1971)
  • International M1400 (1969)
  • International M1200 (1968-1972)
  • International M1100 (1968-1972)
  • International M Series Van (1961-1964)
  • International 908C (1968-1969)
  • International 1310 (1971-1973)
  • International 1300D (1969-1970)
  • International 1300C (1968)
  • International 1210 (1971-1973)
  • International 1200D (1969-1970)
  • International 1200C (1968)
  • International 1110 (1971-1973)
  • International 1100D (1969-1970)
  • International 1100C (1968)
  • International 1010 (1971-1973)
  • International 1000D (1969-1970)
  • International 1000C (1968)
  • International 100 (1974)
  • International Travelall (1975)
  • International MS (1975)
  • International Scout II (1971-1980)
  • International 200 (1974-1975)
  • International 150 (1975)
  • Pontiac Tempest (1968-1969)
  • Pontiac Executive (1967-1969)
  • Buick Sportwagon (1964)
  • Buick Special (1964-1967)
  • Chrysler 300 (1959-1971)
  • Cadillac Series 75 Fleetwood (1953-1964)
  • Cadillac Series 62 (1953-1964)
  • Oldsmobile Jetstar I (1964-1965)
  • Oldsmobile Cutlass Supreme (1967)
  • Pontiac LeMans (1968-1969)
  • Pontiac GTO (1967-1969)
  • Pontiac Grand Prix (1968-1969)
  • Pontiac Firebird (1967-1969)
  • Pontiac Catalina (1967-1969)
  • Pontiac Bonneville (1968-1969)
  • Plymouth Superbird (1970)
  • Plymouth Suburban (1960)
  • Plymouth Sport Wagon (1960)
  • Plymouth Savoy (1960)
  • Plymouth Satellite (1966-1974)
  • Plymouth GTX (1968-1971)
  • Plymouth Fury III (1968-1974)
  • Plymouth Fury II (1968-1974)
  • Plymouth Fury I (1968-1974)
  • Plymouth Cuda (1970-1971)
  • Plymouth Belvedere (1960, 1963-1965, 1967-1970)
  • Plymouth Barracuda (1967-1971)
  • Oldsmobile Vista Cruiser (1964-1969)
  • Oldsmobile Toronado (1966-1967)
  • Oldsmobile Super 88 (1957-1964)
  • Oldsmobile Starfire (1957, 1961-1966)
  • Oldsmobile Jetstar 88 (1964-1966)
  • Oldsmobile Fiesta (1957-1964)
  • Oldsmobile F85 (1964-1966)
  • Oldsmobile Dynamic 88 (1958-1966)
  • Oldsmobile Delta 88 (1965-1967)
  • Oldsmobile Delmont 88 (1967)
  • Oldsmobile Cutlass (1964-1968)
  • Oldsmobile 98 (1958-1969)
  • Oldsmobile 88 (1957)
  • Oldsmobile 442 (1965-1969)
  • GMC P35/P3500 Van (1968)
  • GMC P25/P2500 Van (1968)
  • GMC K35/K3500 Pickup (1968)
  • GMC K25/K2500 Suburban (1968)
  • GMC K25/K2500 Pickup (1968)
  • GMC K15/K1500 Suburban (1968)
  • GMC K15/K1500 Pickup (1968)
  • GMC G25/G2500 Van (1968)
  • GMC G15/G1500 Van (1968)
  • GMC C35/C3500 Pickup (1968)
  • GMC C25/C2500 Suburban (1968)
  • GMC C25/C2500 Pickup (1968)
  • GMC C15/C1500 Suburban (1968)
  • GMC C15/C1500 Pickup (1968)
  • Excalibur Phaeton (1965-1970)
  • Dodge Wm300 Power Wagon (1960-1962)
  • Dodge W300 Series (1960-1966)
  • Dodge W200 Series (1960-1966)
  • Dodge W200 Pickup (1974)
  • Dodge W100 Series (1960-1966)
  • Dodge W100 Pickup (1974)
  • Dodge Polara (1960-1962, 1964-1968, 1972-1973)
  • Dodge Lancer (1961)
  • Dodge Dart (1961-1962, 1968-1969)
  • Dodge D300 Pickup (1973-1974)
  • Dodge D200 Pickup (1973-1974)
  • Dodge D100 Pickup (1973-1974)
  • Dodge Challenger (1970-1971)
  • Dodge B200 Van (1974)
  • Dodge B100 Van (1974)
  • Dodge 880 (1964-1965)
  • Chrysler Newport (1965-1966)
  • Chrysler New Yorker (1973-1974)
  • Chevrolet Townsman (1969-1970)
  • Chevrolet P30 Van (1968)
  • Chevrolet P20 Van (1968)
  • Chevrolet Nova (1970)
  • Chevrolet Monte Carlo (1970)
  • Chevrolet Kingswood (1969-1970)
  • Chevrolet K30 Pickup (1968)
  • Chevrolet K20 Suburban (1968)
  • Chevrolet K20 Pickup (1968)
  • Chevrolet K10 Suburban (1968)
  • Chevrolet K10 Pickup (1968)
  • Chevrolet Impala (1963-1970)
  • Chevrolet G20 Van (1968)
  • Chevrolet G10 Van (1968)
  • Chevrolet Corvette (1962-1970)
  • Chevrolet Chevy II (1965-1968)
  • Chevrolet Chevelle (1969-1970)
  • Chevrolet Caprice (1969-1970)
  • Chevrolet Camaro (1967-1970)
  • Chevrolet C30 Pickup (1968)
  • Chevrolet C20 Suburban (1968)
  • Chevrolet C20 Pickup (1968)
  • Chevrolet C10 Suburban (1968)
  • Chevrolet C10 Pickup (1968)
  • Chevrolet Brookwood (1969-1970)
  • Chevrolet Biscayne (1969-1970)
  • Chevrolet Bel Air (1969-1970)
  • Checker Marathon (1968-1970)
  • Cadillac Series 70 Fleetwood Eldorado (1958)
  • Cadillac Series 60 Fleetwood (1953-1964)
  • Cadillac Fleetwood (1965-1966)
  • Cadillac Eldorado (1953-1966)
  • Cadillac DeVille (1953-1956, 1958-1966)
  • Cadillac Calais (1965-1966)
  • Buick Wildcat (1964-1966)
  • Buick Skylark (1964-1967)
  • Buick Roadmaster (1950-1952)
  • Buick Riviera (1963-1966)
  • Buick LeSabre (1964, 1966-1967)
  • Buick Gran Sport (1966)
  • Buick Electra (1965-1966)
  • Plymouth Trailduster (1974-1978)
  • Plymouth Road Runner (1968-1975)
  • Plymouth PB300 (1976-1978)
  • Plymouth PB200 (1976-1978)
  • Plymouth Gran Fury (1972-1977)
  • Plymouth Fury (1960, 1963-1964, 1967-1978)
  • Dodge W300 (1975-1978)
  • Dodge W200 (1975-1978)
  • Dodge W150 (1977-1978)
  • Dodge W100 (1975-1977)
  • Dodge Royal Monaco (1975-1977)
  • Dodge Ramcharger (1974-1978)
  • Dodge Monaco (1965, 1968-1978)
  • Dodge Magnum (1978)
  • Dodge D450 (1978)
  • Dodge D400 (1978)
  • Dodge D300 (1975-1978)
  • Dodge D200 (1975-1978)
  • Dodge D150 (1977-1978)
  • Dodge D100 (1975-1978)
  • Dodge Coronet (1965-1976)
  • Dodge Charger (1967-1978)
  • Dodge CB300 (1976-1979)
  • Dodge B300 (1975-1978)
  • Dodge B200 (1975-1978)
  • Chrysler Town & Country (1963-1966, 1970-1971, 1973-1974, 1976-1977)
  • Chrysler Cordoba (1975-1976)
  • Jensen Interceptor (1970-1976)

Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
