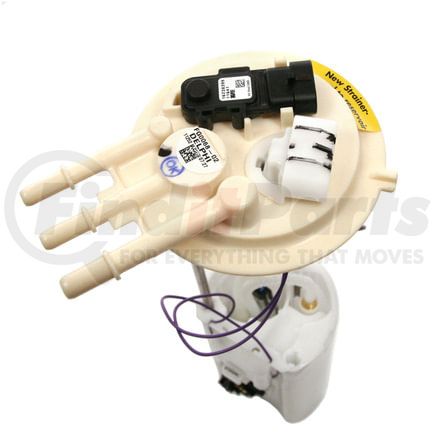

(888) 312-8812 Login SignupDELPHI FG0068 Fuel Pump Module Assembly
MSRP: $573.09
$33799
Save $235.10
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 23
DELPHI FG0068 Part Description
DELPHI FG0068 Specifications
Product Attributes
| System Pressure | 62 psi |
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | Yes |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 40 82 |
| Resistance Ohms Full | 250 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 24 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 62 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | Yes |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604060056 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0068 Part Interchanges
| Brand | Part Number |
|---|---|
| General Motors | 19180091, 25178736, 25314776, 19331282, 19369961 |
| N/A | 9535033, EFP809M, E3940M, P413M, USEP3940M, F2951A, 402-P3940M, C0342M |
| Bosch | 67072 |
| ACDelco | MU109, MU1782 |
| Magneti Marelli | 1AMFP00098 |
| EVO Driveline | AFS0530S, RE0530S |
| Carter | P74752M |
| Airtex | E3940M |
| Spectra Premium | SP413M |
| DENSO Auto Parts | 953-0013, 953-5033 |
| Carquest | M319673 |
| TYC Cooling - Archived | 150009 |
| AutoZone | EFG0068 |
| Dorman | 2630301 |
| Precision Fuel | A27006, A30027 |
| MasterPro Fuel Pumps | MPA27006, MPA30027 |
| TruGrade | D5331018 |
DELPHI FG0068 Fits Vehicles
- GMC Safari (1997-1999)
- Chevrolet Astro (1997-1999)
DELPHI FG0068 Cross References
We have 3 alternatives for the FG0068 by DELPHI:
